WPUT SMART

Features

  • Wide body design
  • Robust polycarbonate body and opalised diffuser
  • Easy release stainless steel clip system
  • 50,000hrs (@L70) rated system
  • SELV compliant
  • Suitable for surface or pendant mount
  • IP65 and IK08 rating
  • Flicker-free operation
Dim Optional
Emergency Optional
IK08
Indoor
IP65
Motion Sensor - Optional
Outdoor
RCM
SELV

Suitable Applications

Product Code Key
Expand
product code key
Specifications
Expand
WPUTWPUT220-R85WPUT420-R85WPUT435-R85
Nominal Power (W)1835
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Body ColourGrey
Luminous Flux (lm)21604200
Efficacy (lm/W)120
Beam Angle (°)120
CRI>80
Power Factor>0.9
SDCM<3
CCT (K)5000
Product Lifetime (L70B50)>50000 @ L70
Operating Temp. (°C)-20 to 35
Weight (kg)1.22.2
IP RatingIP65
IK RatingIK08
Product Carton qty per box1
Product Carton Dimension (mm)660 x 130 x 931270 x 130 x 93
Product Carton Weight (kg)1.42.6
Master Carton Qty64
Master Carton Dimension (mm)680 x 280 x 3051289 x 280 x 210
Master Carton Weight (kg)8.4

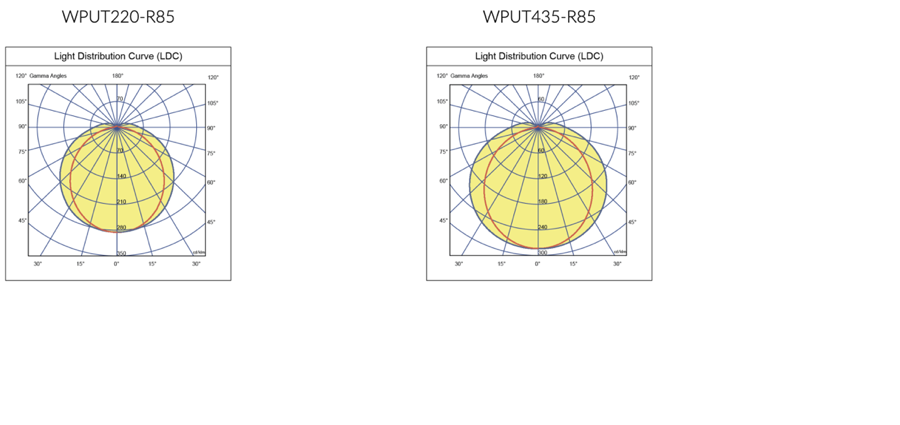

Lighting Distribution
Expand
WPUT polar

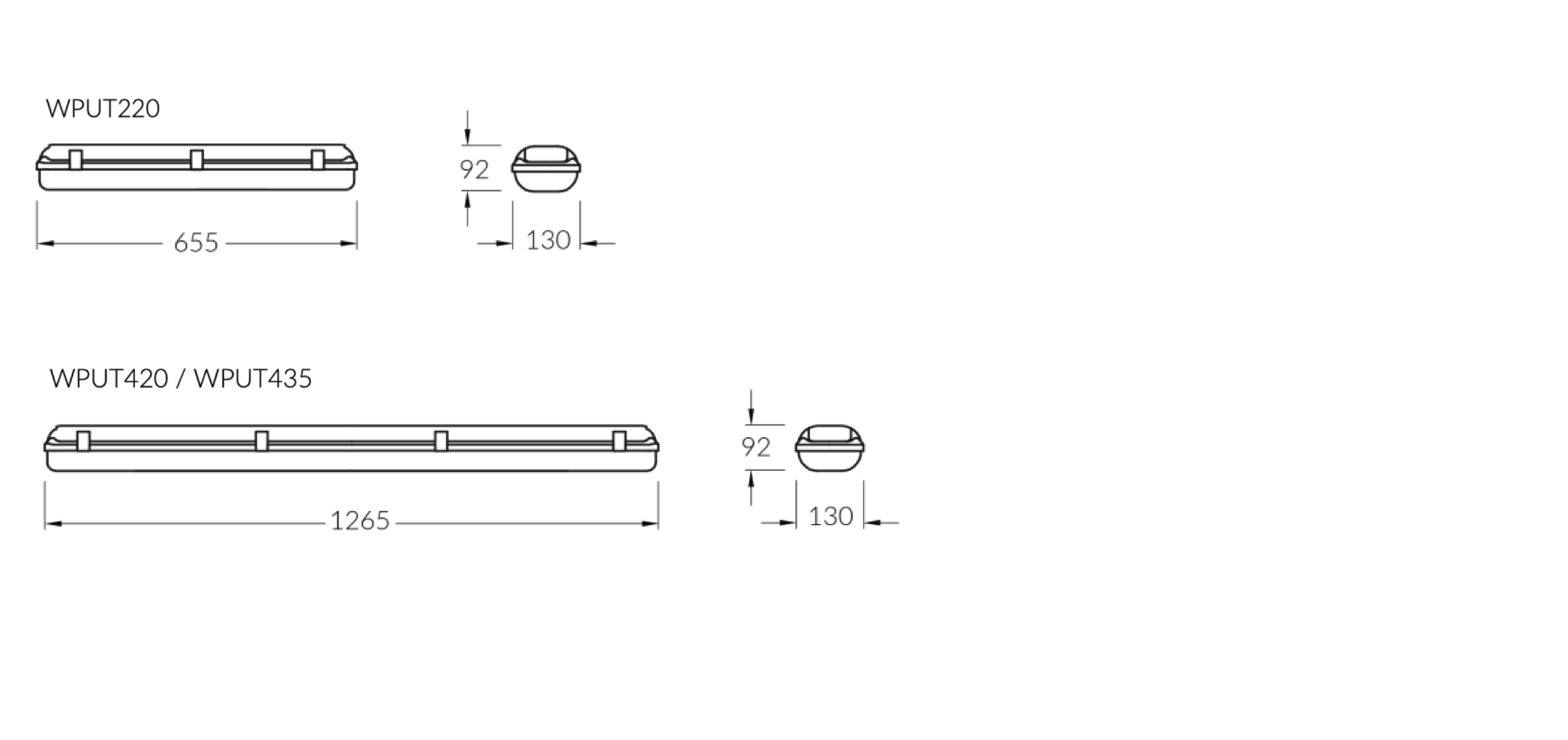

Dimensions
Expand
WPUT dim

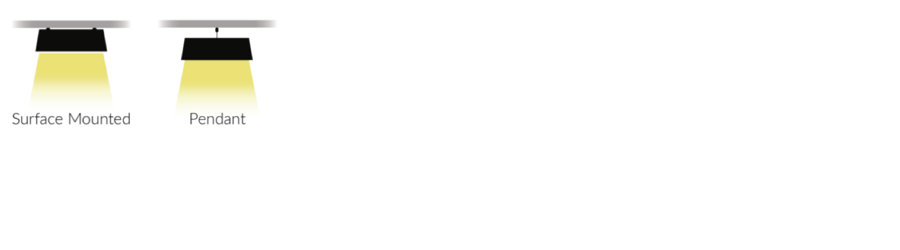

Mounting Methods
Expand
WPUT mount

Product Datasheet

WYPLASH WPUT SMART
(showing 12 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
Efficacy (lm/W)
Sort
CCT
Sort
IES
WPUT220-R85655 x 130 x 921821601205000Download
WPUT220-R85E01655 x 130 x 922021601205000Download
WPUT220-R85S25655 x 130 x 921821601205000Download
WPUT220-R85E1S25655 x 130 x 922021601205000Download
WPUT420-R851265 x 130 x 921821601205000Download
WPUT420-R85E011265 x 130 x 922021601205000Download
WPUT420-R85S251265 x 130 x 921821601205000Download
WPUT420-R85E1S251265 x 130 x 922021601205000Download
WPUT435-R851265 x 130 x 923542001205000Download
WPUT435-R85E011265 x 130 x 923742001205000Download
WPUT435-R85S251265 x 130 x 923542001205000Download
WPUT435-R85E1S251265 x 130 x 923742001205000Download
