WYPLASHWPLLight weight weatherproof batten available in slim and wide body configurations that is perfectly at home in factories, warehouses, car parks and a whole lot more. Incorporating long-life 50,000hr LEDs in a polycarbonate body, Wyplash WPL can be surface or pendant mounted both indoors and outdoors, making it a one-stop installation solution.
Features
- Polycarbonate body and opalised diffuser
- Stainless steel clips
- SELV compliant
- EMC compliant to 300Mhz
- 50,000 hr rated life
- Dimmable driver
- Light weight

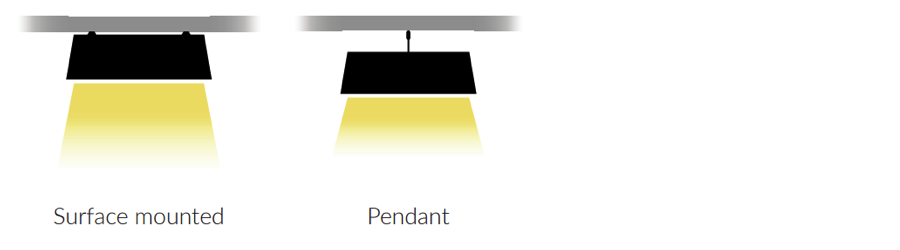

- Surface or pendant mounting
- IP65 rating
Suitable Applications
Model | WPLS210xK | WPLS220xK | WPLS420xK | WPLS435xK | WPLT220xK | WPLT420xK | WPLT435xK |
|---|---|---|---|---|---|---|---|
Nominal Power (W) | 10 | 20 | 25 | 35 | 20 | 25 | 35 |
Input Voltage | 200 – 240 VAC 50 / 60 Hz | ||||||
Luminous Flux (lm) | 1040 | 1600 | 2050 | 3360 | 1780 | 2430 | 3360 |
Efficacy (lm/W) | 104 | 80 | 82 | 96 | 89 | 97 | 96 |
Power Factor | 0.9 | ||||||
Colour Temp. (K) | 3000 / 4000 / 6500 | ||||||
CRI | > 80 | ||||||
Beam Angle (º) | > 100 | ||||||
LED Life L70B50 (hr) | 50,000 | ||||||
Ambient Temp. ta (°C) | 35 | ||||||
Weight (kg) | 1.2 | 1.2 | 1.8 | 1.8 | 1.4 | 1.8 | 2.5 |
“x” denotes CCT, 3 = 3000K ; 4 = 4000K ; 6 = 6500K
Product Datasheet

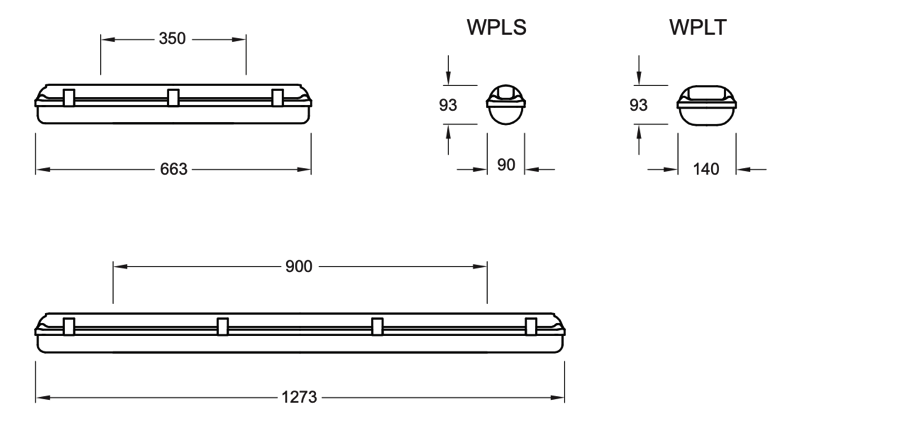

Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| WPLS210RBL3K | 663 x 90 x 93 | 10 | 1040 | 104 | 3000 | |
| WPLS210RBL4K | 663 x 90 x 93 | 10 | 1040 | 104 | 4000 | |
| WPLS210RBL6K | 663 x 90 x 93 | 10 | 1040 | 104 | 6500 | |
| WPLS220RBL3K | 663 x 90 x 93 | 20 | 1600 | 80 | 3000 | |
| WPLS220RBL4K | 663 x 90 x 93 | 20 | 1600 | 80 | 4000 | |
| WPLS220RBL6K | 663 x 90 x 93 | 20 | 1600 | 80 | 6500 | |
| WPLS420RBL3K | 1273 x 90 x 93 | 25 | 2050 | 82 | 3000 | |
| WPLS420RBL4K | 1273 x 90 x 93 | 25 | 2050 | 82 | 4000 | |
| WPLS420RBL6K | 1273 x 90 x 93 | 25 | 2050 | 82 | 6500 | |
| WPLS435RBL3K | 1273 x 90 x 93 | 35 | 3360 | 96 | 3000 | |
| WPLS435RBL4K | 1273 x 90 x 93 | 35 | 3360 | 96 | 4000 | |
| WPLS435RBL6K | 1273 x 90 x 93 | 35 | 3360 | 96 | 6500 | |
| WPLT220RBL3K | 663 x 140 x 93 | 20 | 1780 | 89 | 3000 | |
| WPLT220RBL4K | 663 x 140 x 93 | 20 | 1780 | 89 | 4000 | |
| WPLT220RBL6K | 663 x 140 x 93 | 20 | 1780 | 89 | 6500 | |
| WPLT420RBL3K | 1273 x 140 x 93 | 25 | 2430 | 97 | 3000 | |
| WPLT420RBL4K | 1273 x 140 x 93 | 25 | 2430 | 97 | 4000 | |
| WPLT420RBL6K | 1273 x 140 x 93 | 25 | 2430 | 97 | 6500 | |
| WPLT435RBL3K | 1273 x 140 x 93 | 35 | 3360 | 96 | 3000 | |
| WPLT435RBL4K | 1273 x 140 x 93 | 35 | 3360 | 96 | 4000 | |
| WPLT435RBL6K | 1273 x 140 x 93 | 35 | 3360 | 96 | 6500 |
