VARROSROUND TRIM WALL WASHER V2Varros downlights are designed with user-friendly installation in mind - easy-to-follow instructions and secure mounting mechanisms. Also equipped with a secure fitting mechanism that ensures the fixtures remain firmly in place once installed.
Item 1 of 1
Features
- Comprehensive range of downlight
- Round trim wall washer recessed luminaire
- Low glare & comfortable lighting
- Low maintenance
- Energy efficient
- Easy and secure installation
Suitable Applications
Item 1 of 3
Specifications
Model | VRWD305 | VRWD308 | VRWD313 |
|---|---|---|---|
Cut Out (mm) | Ø75 | Ø75 | Ø75 |
Nominal Power (W) | 5 | 8 | 13 |
Input Voltage (V) | 220 – 240 | ||
Frequency (Hz) | 50 / 60 | ||
Luminaire Flux (lm)* | 289 | 354 | 535 |
Luminaire Efficacy (lm/W) * | 58 | 58 | 48 |
CRI (Ra) | > 90 | ||
Power Factor | > 0.90 | ||
SDCM | < 3 | ||
CCT (K) | 2700 / 3000 / 4000 | ||
Beam Angle (°) | 45 | ||
Luminaire Rated Life (hr) | > 50,000 | ||
UGR Rating | < 16 | ||
Ambient Temp. ta (°C) | 25 | ||
Operating Temp. (°C) | -20 to +50 | ||
Weight (kg) | 0.27 | ||
IP Rating | IP20 / IP44 | ||
* Specifications shown for 3000K

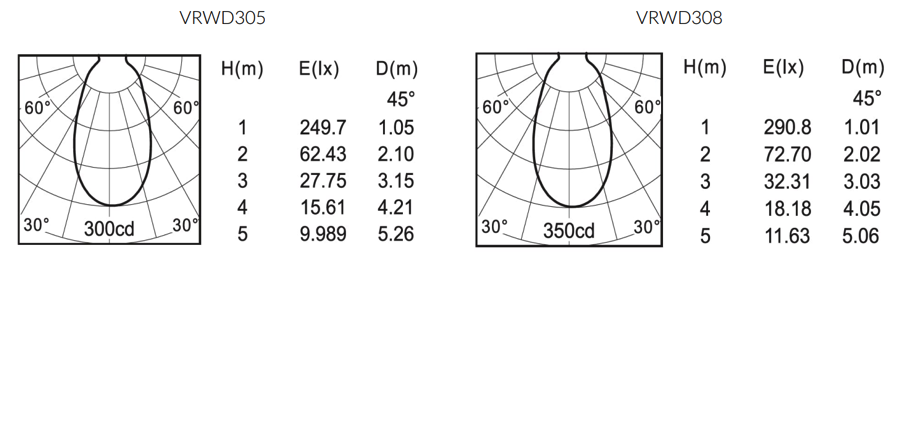

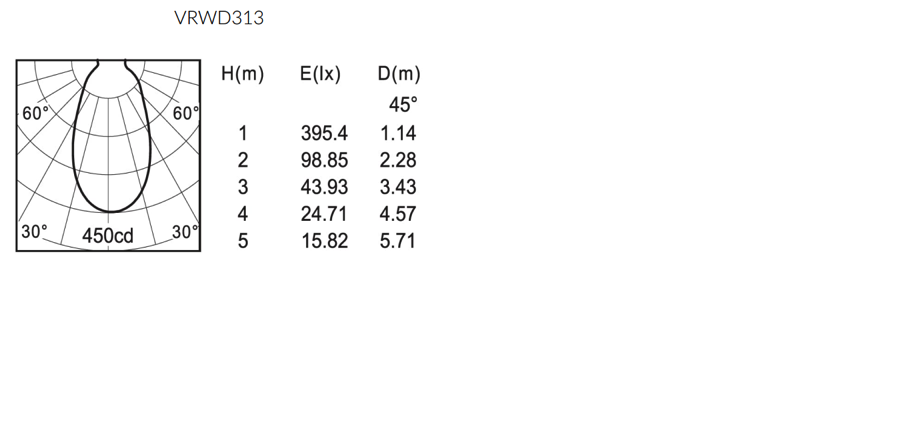

Lighting Distribution

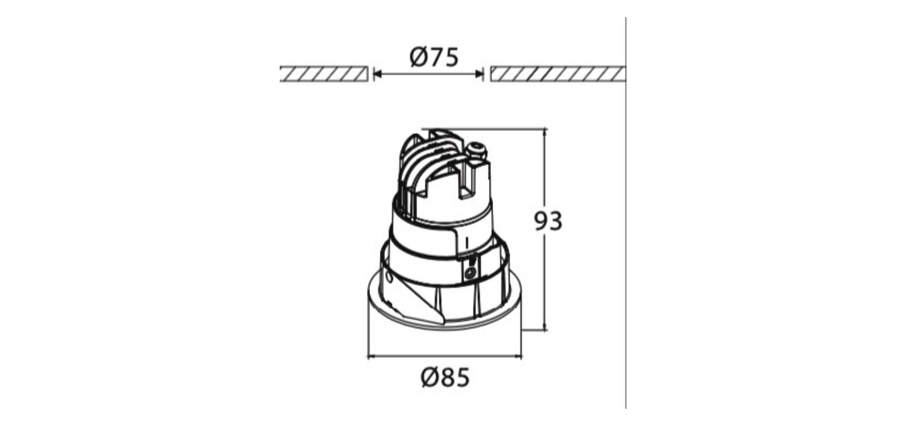

Dimensions

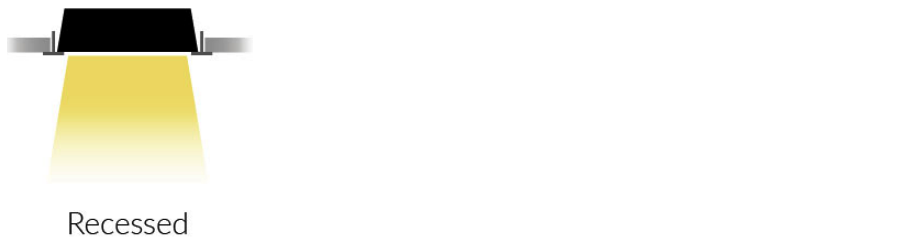

Mounting Methods
Product Datasheet
VARROS ROUND TRIM WALL WASHER V2
(showing 18 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| VRWD305-R92B45Z20 | Ø85 x 86 | 5 | 289 | 58 | 2700 | |
| VRWD305-R92B45Z44 | Ø85 x 86 | 5 | 289 | 58 | 2700 | |
| VRWD305-R93B45Z20 | Ø85 x 86 | 5 | 289 | 58 | 3000 | |
| VRWD305-R93B45Z44 | Ø85 x 86 | 5 | 289 | 58 | 3000 | |
| VRWD305-R94B45Z20 | Ø85 x 86 | 5 | 289 | 58 | 4000 | |
| VRWD305-R94B45Z44 | Ø85 x 86 | 5 | 289 | 58 | 4000 | |
| VRWD308-R92B45Z20 | Ø85 x 86 | 8 | 354 | 58 | 2700 | |
| VRWD308-R92B45Z44 | Ø85 x 86 | 8 | 354 | 58 | 2700 | |
| VRWD308-R93B45Z20 | Ø85 x 86 | 8 | 354 | 58 | 3000 | |
| VRWD308-R93B45Z44 | Ø85 x 86 | 8 | 354 | 58 | 3000 | |
| VRWD308-R94B45Z20 | Ø85 x 86 | 8 | 354 | 58 | 4000 | |
| VRWD308-R94B45Z44 | Ø85 x 86 | 8 | 354 | 58 | 4000 | |
| VRWD313-R92B45Z20 | Ø85 x 86 | 13 | 535 | 48 | 2700 | |
| VRWD313-R92B45Z44 | Ø85 x 86 | 13 | 535 | 48 | 2700 | |
| VRWD313-R93B45Z20 | Ø85 x 86 | 13 | 535 | 48 | 3000 | |
| VRWD313-R93B45Z44 | Ø85 x 86 | 13 | 535 | 48 | 3000 | |
| VRWD313-R94B45Z20 | Ø85 x 86 | 13 | 535 | 48 | 4000 | |
| VRWD313-R94B45Z44 | Ø85 x 86 | 13 | 535 | 48 | 4000 |
