VARROSROUND PIN HOLE TRIM FIXEDVarros offers a lighting experience that's easy on the eyes, thanks to its low-glare design. Installation is a straightforward process, and its secure fitting ensures that it stays in place. Its sleek design and pinhole opening make it a stylish choice for hospitality, retail, and commercial spaces.
Item 1 of 1
Features
- Round trim recessed luminaire
- Pinhole opening
- Multiple beam angle options
- Fixed tilt
- Low glare
- Low maintenance & energy efficient
- Easy installation
- Secure fitting
Suitable Applications
Item 1 of 3
Specifications
Model | VRP305 | VRP308 | VRP413 | VRP418 |
|---|---|---|---|---|
Cut Out (mm) | Ø75 | Ø75 | Ø100 | Ø100 |
Nominal Power (W) | 5 | 8 | 13 | 18 |
Input Voltage (V) | 220 – 240 | |||
Frequency (Hz) | 50 / 60 | |||
Luminaire Flux (lm)* | 309 | 414 | 714 | 1129 |
Luminaire Efficacy (lm/W) * | 62 | 52 | 55 | 63 |
CRI (Ra) | > 90 | |||
Power Factor | > 0.90 | |||
SDCM | < 3 | |||
CCT (K) | 2700 / 3000 / 4000 | |||
Beam Angle (°) | 17 / 24 / 38 / 60 | |||
Luminaire Rated Life (hr) | > 50,000 | |||
UGR Rating | < 16 | |||
Ambient Temp. ta (°C) | 25 | |||
Operating Temp. (°C) | -20 to +50 | |||
Weight (kg) | 0.26 | 0.26 | 0.43 | 0.43 |
IP Rating | IP20 / IP44 | |||
* Specifications shown for 3000K

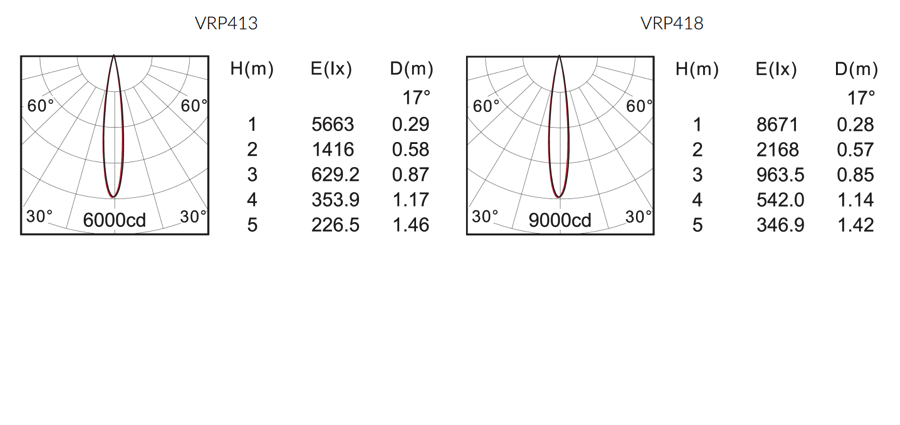

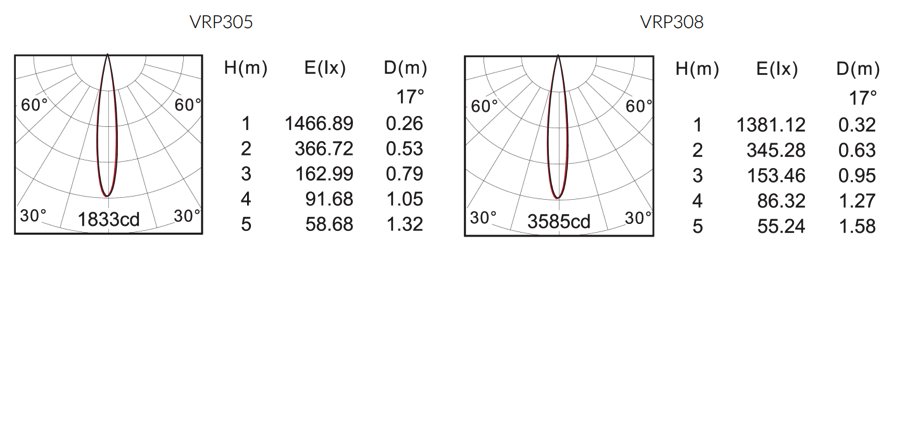

Lighting Distribution

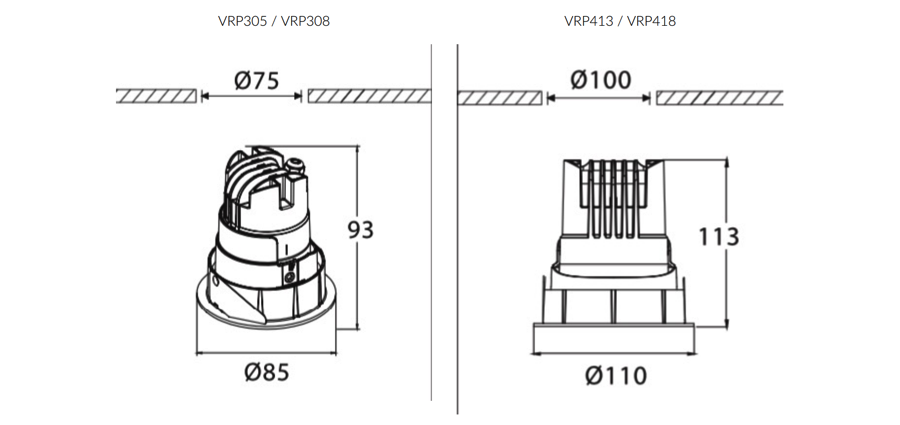

Dimensions

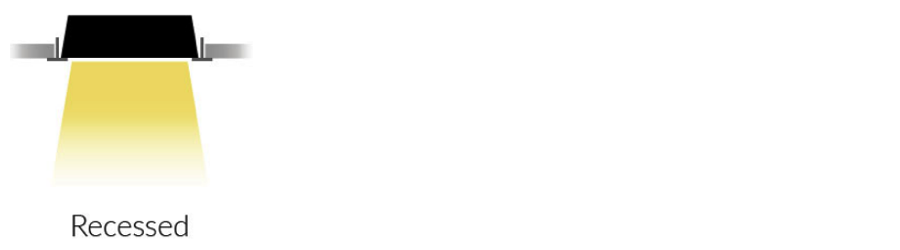

Mounting Methods
Product Datasheet
VARROS ROUND PIN HOLE TRIM FIXED
(showing 144 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| VRP305-R92B17Z20 | Ø85 x 93 | 5 | 309 | 62 | 2700 | |
| VRP305-R92B17Z44 | Ø85 x 93 | 5 | 309 | 62 | 2700 | |
| VRP305-R92B24Z20 | Ø85 x 93 | 5 | 335 | 67 | 2700 | |
| VRP305-R92B24Z44 | Ø85 x 93 | 5 | 335 | 67 | 2700 | |
| VRP305-R92B38Z20 | Ø85 x 93 | 5 | 314 | 63 | 2700 | |
| VRP305-R92B38Z44 | Ø85 x 93 | 5 | 314 | 63 | 2700 | |
| VRP305-R92B60Z20 | Ø85 x 93 | 5 | 259 | 52 | 2700 | |
| VRP305-R92B60Z44 | Ø85 x 93 | 5 | 259 | 52 | 2700 | |
| VRP305-R93B17Z20 | Ø85 x 93 | 5 | 309 | 62 | 3000 | |
| VRP305-R93B17Z44 | Ø85 x 93 | 5 | 309 | 62 | 3000 | |
| VRP305-R93B24Z20 | Ø85 x 93 | 5 | 335 | 67 | 3000 | |
| VRP305-R93B24Z44 | Ø85 x 93 | 5 | 335 | 67 | 3000 | |
| VRP305-R93B38Z20 | Ø85 x 93 | 5 | 314 | 63 | 3000 | |
| VRP305-R93B38Z44 | Ø85 x 93 | 5 | 314 | 63 | 3000 | |
| VRP305-R93B60Z20 | Ø85 x 93 | 5 | 259 | 52 | 3000 | |
| VRP305-R93B60Z44 | Ø85 x 93 | 5 | 259 | 52 | 3000 | |
| VRP305-R94B17Z20 | Ø85 x 93 | 5 | 309 | 62 | 3000 | |
| VRP305-R94B17Z44 | Ø85 x 93 | 5 | 309 | 62 | 3000 | |
| VRP305-R94B24Z20 | Ø85 x 93 | 5 | 335 | 67 | 3000 | |
| VRP305-R94B24Z44 | Ø85 x 93 | 5 | 335 | 67 | 4000 | |
| VRP305-R94B38Z20 | Ø85 x 93 | 5 | 314 | 63 | 4000 | |
| VRP305-R94B38Z44 | Ø85 x 93 | 5 | 314 | 63 | 4000 | |
| VRP305-R94B60Z20 | Ø85 x 93 | 5 | 259 | 52 | 4000 | |
| VRP305-R94B60Z44 | Ø85 x 93 | 5 | 259 | 52 | 4000 | |
| VRP308-R92B17Z20 | Ø85 x 93 | 8 | 414 | 56 | 2700 | |
| VRP308-R92B17Z44 | Ø85 x 93 | 8 | 414 | 56 | 2700 | |
| VRP308-R92B24Z20 | Ø85 x 93 | 8 | 441 | 55 | 2700 | |
| VRP308-R92B24Z44 | Ø85 x 93 | 8 | 441 | 55 | 2700 | |
| VRP308-R92B38Z20 | Ø85 x 93 | 8 | 413 | 52 | 2700 | |
| VRP308-R92B38Z44 | Ø85 x 93 | 8 | 413 | 52 | 2700 | |
| VRP308-R92B60Z20 | Ø85 x 93 | 8 | 337 | 42 | 2700 | |
| VRP308-R92B60Z44 | Ø85 x 93 | 8 | 337 | 42 | 2700 | |
| VRP308-R93B17Z20 | Ø85 x 93 | 8 | 414 | 56 | 3000 | |
| VRP308-R93B17Z44 | Ø85 x 93 | 8 | 414 | 56 | 3000 | |
| VRP308-R93B24Z20 | Ø85 x 93 | 8 | 441 | 55 | 3000 | |
| VRP308-R93B24Z44 | Ø85 x 93 | 8 | 441 | 55 | 3000 | |
| VRP308-R93B38Z20 | Ø85 x 93 | 8 | 413 | 52 | 3000 | |
| VRP308-R93B38Z44 | Ø85 x 93 | 8 | 413 | 52 | 3000 | |
| VRP308-R93B60Z20 | Ø85 x 93 | 8 | 337 | 42 | 3000 | |
| VRP308-R93B60Z44 | Ø85 x 93 | 8 | 337 | 42 | 3000 | |
| VRP308-R94B17Z20 | Ø85 x 93 | 8 | 414 | 52 | 4000 | |
| VRP308-R94B17Z44 | Ø85 x 93 | 8 | 414 | 52 | 4000 | |
| VRP308-R94B24Z20 | Ø85 x 93 | 8 | 441 | 55 | 4000 | |
| VRP308-R94B24Z44 | Ø85 x 93 | 8 | 441 | 55 | 4000 | |
| VRP308-R94B38Z20 | Ø85 x 93 | 8 | 413 | 52 | 4000 | |
| VRP308-R94B38Z44 | Ø85 x 93 | 8 | 413 | 52 | 4000 | |
| VRP308-R94B60Z20 | Ø85 x 93 | 8 | 337 | 42 | 4000 | |
| VRP308-R94B60Z44 | Ø85 x 93 | 8 | 337 | 42 | 4000 | |
| VRP313-R92B17Z20 | Ø85 x 93 | 13 | 570 | 44 | 2700 | |
| VRP313-R92B17Z44 | Ø85 x 93 | 13 | 570 | 44 | 2700 | |
| VRP313-R92B24Z20 | Ø85 x 93 | 13 | 668 | 51 | 2700 | |
| VRP313-R92B24Z44 | Ø85 x 93 | 13 | 668 | 51 | 2700 | |
| VRP313-R92B38Z20 | Ø85 x 93 | 13 | 629 | 48 | 2700 | |
| VRP313-R92B38Z44 | Ø85 x 93 | 13 | 629 | 48 | 2700 | |
| VRP313-R92B60Z20 | Ø85 x 93 | 13 | 511 | 39 | 2700 | |
| VRP313-R92B60Z44 | Ø85 x 93 | 13 | 511 | 39 | 2700 | |
| VRP313-R93B17Z20 | Ø85 x 93 | 13 | 570 | 44 | 3000 | |
| VRP313-R93B17Z44 | Ø85 x 93 | 13 | 570 | 44 | 3000 | |
| VRP313-R93B24Z20 | Ø85 x 93 | 13 | 668 | 51 | 3000 | |
| VRP313-R93B24Z44 | Ø85 x 93 | 13 | 668 | 51 | 3000 | |
| VRP313-R93B38Z20 | Ø85 x 93 | 13 | 629 | 48 | 3000 | |
| VRP313-R93B38Z44 | Ø85 x 93 | 13 | 629 | 48 | 3000 | |
| VRP313-R93B60Z20 | Ø85 x 93 | 13 | 511 | 39 | 3000 | |
| VRP313-R93B60Z44 | Ø85 x 93 | 13 | 511 | 39 | 3000 | |
| VRP313-R94B17Z20 | Ø85 x 93 | 13 | 570 | 44 | 4000 | |
| VRP313-R94B17Z44 | Ø85 x 93 | 13 | 570 | 44 | 4000 | |
| VRP313-R94B24Z20 | Ø85 x 93 | 13 | 668 | 51 | 4000 | |
| VRP313-R94B24Z44 | Ø85 x 93 | 13 | 668 | 51 | 4000 | |
| VRP313-R94B38Z20 | Ø85 x 93 | 13 | 629 | 48 | 4000 | |
| VRP313-R94B38Z44 | Ø85 x 93 | 13 | 629 | 48 | 4000 | |
| VRP313-R94B60Z20 | Ø85 x 93 | 13 | 511 | 39 | 4000 | |
| VRP313-R94B60Z44 | Ø85 x 93 | 13 | 511 | 39 | 4000 | |
| VRP413-R92B17Z20 | Ø110 x 113 | 13 | 586 | 45 | 2700 | |
| VRP413-R92B17Z44 | Ø110 x 113 | 13 | 586 | 45 | 2700 | |
| VRP413-R92B24Z20 | Ø110 x 113 | 13 | 698 | 54 | 2700 | |
| VRP413-R92B24Z44 | Ø110 x 113 | 13 | 698 | 54 | 2700 | |
| VRP413-R92B38Z20 | Ø110 x 113 | 13 | 769 | 59 | 2700 | |
| VRP413-R92B38Z44 | Ø110 x 113 | 13 | 769 | 59 | 2700 | |
| VRP413-R92B60Z20 | Ø110 x 113 | 13 | 714 | 55 | 2700 | |
| VRP413-R92B60Z44 | Ø110 x 113 | 13 | 714 | 55 | 2700 | |
| VRP413-R93B17Z20 | Ø110 x 113 | 13 | 586 | 45 | 3000 | |
| VRP413-R93B17Z44 | Ø110 x 113 | 13 | 586 | 45 | 3000 | |
| VRP413-R93B24Z20 | Ø110 x 113 | 13 | 698 | 54 | 3000 | |
| VRP413-R93B24Z44 | Ø110 x 113 | 13 | 698 | 54 | 3000 | |
| VRP413-R93B38Z20 | Ø110 x 113 | 13 | 769 | 59 | 3000 | |
| VRP413-R93B38Z44 | Ø110 x 113 | 13 | 769 | 59 | 3000 | |
| VRP413-R93B60Z20 | Ø110 x 113 | 13 | 714 | 55 | 3000 | |
| VRP413-R93B60Z44 | Ø110 x 113 | 13 | 714 | 55 | 3000 | |
| VRP413-R94B17Z20 | Ø110 x 113 | 13 | 586 | 45 | 4000 | |
| VRP413-R94B17Z44 | Ø110 x 113 | 13 | 586 | 45 | 4000 | |
| VRP413-R94B24Z20 | Ø110 x 113 | 13 | 698 | 54 | 4000 | |
| VRP413-R94B24Z44 | Ø110 x 113 | 13 | 698 | 54 | 4000 | |
| VRP413-R94B38Z20 | Ø110 x 113 | 13 | 769 | 59 | 4000 | |
| VRP413-R94B38Z44 | Ø110 x 113 | 13 | 769 | 59 | 4000 | |
| VRP413-R94B60Z20 | Ø110 x 113 | 13 | 714 | 55 | 4000 | |
| VRP413-R94B60Z44 | Ø110 x 113 | 13 | 714 | 55 | 4000 | |
| VRP418-R92B17Z20 | Ø110 x 113 | 18 | 905 | 50 | 2700 | |
| VRP418-R92B17Z44 | Ø110 x 113 | 18 | 905 | 50 | 2700 | |
| VRP418-R92B24Z20 | Ø110 x 113 | 18 | 1113 | 62 | 2700 | |
| VRP418-R92B24Z44 | Ø110 x 113 | 18 | 1113 | 62 | 2700 | |
| VRP418-R92B38Z20 | Ø110 x 113 | 18 | 1215 | 68 | 2700 | |
| VRP418-R92B38Z44 | Ø110 x 113 | 18 | 1215 | 68 | 2700 | |
| VRP418-R92B60Z20 | Ø110 x 113 | 18 | 1129 | 63 | 2700 | |
| VRP418-R92B60Z44 | Ø110 x 113 | 18 | 1129 | 63 | 2700 | |
| VRP418-R93B17Z20 | Ø110 x 113 | 18 | 905 | 50 | 3000 | |
| VRP418-R93B17Z44 | Ø110 x 113 | 18 | 905 | 50 | 3000 | |
| VRP418-R93B24Z20 | Ø110 x 113 | 18 | 1113 | 62 | 3000 | |
| VRP418-R93B24Z44 | Ø110 x 113 | 18 | 1113 | 62 | 3000 | |
| VRP418-R93B38Z20 | Ø110 x 113 | 18 | 1215 | 68 | 3000 | |
| VRP418-R93B38Z44 | Ø110 x 113 | 18 | 1215 | 68 | 3000 | |
| VRP418-R93B60Z20 | Ø110 x 113 | 18 | 1129 | 63 | 3000 | |
| VRP418-R93B60Z44 | Ø110 x 113 | 18 | 1129 | 63 | 3000 | |
| VRP418-R94B17Z20 | Ø110 x 113 | 18 | 905 | 50 | 4000 | |
| VRP418-R94B17Z44 | Ø110 x 113 | 18 | 905 | 50 | 4000 | |
| VRP418-R94B24Z20 | Ø110 x 113 | 18 | 1113 | 62 | 4000 | |
| VRP418-R94B24Z44 | Ø110 x 113 | 18 | 1113 | 62 | 4000 | |
| VRP418-R94B38Z20 | Ø110 x 113 | 18 | 1215 | 68 | 4000 | |
| VRP418-R94B38Z44 | Ø110 x 113 | 18 | 1215 | 68 | 4000 | |
| VRP418-R94B60Z20 | Ø110 x 113 | 18 | 1129 | 63 | 4000 | |
| VRP418-R94B60Z44 | Ø110 x 113 | 18 | 1129 | 63 | 4000 | |
| VRP423-R92B17Z20 | Ø110 x 113 | 23 | 998 | 43 | 2700 | |
| VRP423-R92B17Z44 | Ø110 x 113 | 23 | 998 | 43 | 2700 | |
| VRP423-R92B24Z20 | Ø110 x 113 | 23 | 1314 | 57 | 2700 | |
| VRP423-R92B24Z44 | Ø110 x 113 | 23 | 1314 | 57 | 2700 | |
| VRP423-R92B38Z20 | Ø110 x 113 | 23 | 1416 | 62 | 2700 | |
| VRP423-R92B38Z44 | Ø110 x 113 | 23 | 1416 | 62 | 2700 | |
| VRP423-R92B60Z20 | Ø110 x 113 | 23 | 1291 | 56 | 2700 | |
| VRP423-R92B60Z44 | Ø110 x 113 | 23 | 1291 | 56 | 2700 | |
| VRP423-R93B17Z20 | Ø110 x 113 | 23 | 998 | 43 | 3000 | |
| VRP423-R93B17Z44 | Ø110 x 113 | 23 | 998 | 43 | 3000 | |
| VRP423-R93B24Z20 | Ø110 x 113 | 23 | 1314 | 57 | 3000 | |
| VRP423-R93B24Z44 | Ø110 x 113 | 23 | 1314 | 57 | 3000 | |
| VRP423-R93B38Z20 | Ø110 x 113 | 23 | 1416 | 62 | 3000 | |
| VRP423-R93B38Z44 | Ø110 x 113 | 23 | 1416 | 62 | 3000 | |
| VRP423-R93B60Z20 | Ø110 x 113 | 23 | 1291 | 56 | 3000 | |
| VRP423-R93B60Z44 | Ø110 x 113 | 23 | 1291 | 56 | 3000 | |
| VRP423-R94B17Z20 | Ø110 x 113 | 23 | 998 | 43 | 4000 | |
| VRP423-R94B17Z44 | Ø110 x 113 | 23 | 998 | 43 | 4000 | |
| VRP423-R94B24Z20 | Ø110 x 113 | 23 | 1314 | 57 | 4000 | |
| VRP423-R94B24Z44 | Ø110 x 113 | 23 | 1314 | 57 | 4000 | |
| VRP423-R94B38Z20 | Ø110 x 113 | 23 | 1416 | 62 | 4000 | |
| VRP423-R94B38Z44 | Ø110 x 113 | 23 | 1416 | 62 | 4000 | |
| VRP423-R94B60Z20 | Ø110 x 113 | 23 | 1291 | 56 | 4000 | |
| VRP423-R94B60Z44 | Ø110 x 113 | 23 | 1291 | 56 | 4000 |
