UTOFIA UFA - Davis Lighting

UTOFIAUFA
Engineered for maximum performance and efficiency. Delivering an impressive efficacy of 160 lm/W, with an optional upgrade to 190 lm/W, it ensures brighter spaces with lower energy costs. Enjoy instant start‑up with no flickering or humming, providing consistent comfort and productivity. Flexible mounting options. For smarter control, choose optional microwave or PIR motion sensors, or integrate seamlessly with Casambi nodes for wireless management. This is lighting built to perform, save, and adapt—perfect for modern industrial and commercial spaces.
Family Datasheet
Product Information

Item 1 of 1

Product Information

UFA

Features

High lighting efficacy 160lm/w (190lm/w optional)
High ambient temperature rating & good heat dissipation
Instant start-up (no flickering or humming)
Pendant or trunnion mounting (eye bolt supplied)
Microwave or PIR motion sensor, Casambi node optional

IK08

Indoor

IP65

Motion Sensor - Optional

Suitable Applications

Commercial
Industrial
Recreation
Sport Complex
Experience dynamic lighting that elevates every game, turning moments into memories. Where efficiency meets excitement, bringing brilliance to your space.
Warehouse
Brighten your workspace with our warehouse lighting. Crafted for productivity, these lights create an inviting atmosphere, turning your workplace into a hub of efficiency.
Commercial
Industrial
Recreation
Sport Complex
Experience dynamic lighting that elevates every game, turning moments into memories. Where efficiency meets excitement, bringing brilliance to your space.
Warehouse
Brighten your workspace with our warehouse lighting. Crafted for productivity, these lights create an inviting atmosphere, turning your workplace into a hub of efficiency.
Commercial
Industrial
Recreation
Sport Complex
Experience dynamic lighting that elevates every game, turning moments into memories. Where efficiency meets excitement, bringing brilliance to your space.
Warehouse
Brighten your workspace with our warehouse lighting. Crafted for productivity, these lights create an inviting atmosphere, turning your workplace into a hub of efficiency.

Item 1 of 5

Specifications

UFA	UFA100	UFA150	UFA200	UFA240
Nominal Power (W)	100/80/60	150/120/90	200/160/120	240/190/145
Input Voltage (Vac)	120-277
Frequency (Hz)	50/60
Luminous Flux (lm)	16000	24000	32000	38400
CRI	>80
Power Factor	≥0.95
CCT (K)	3000/4000/6000
Beam Angle (°)	60/85/115
IP	65
IK	8
Operating Temp. (°C)	-30 to +50
Operating Humidity (%)	5-90
Housing Material	Aluminium alloy body
Finishing	Powder-coating black (RAL9017)
Optics	Polycarbonate lens
Weight (kg)	1.8	2	2.3	2.6
Rated Life Span (hrs)	>100,000 (L80B20@25°c)
Electrical Class	Class 1
Driver options	ON/OFF, 1-10v dmming

UFA	UFA100H	UFA150H	UFA200H	UFA240H
Nominal Power (W)	100/80/60	150/120/90	200/160/120	240/190/145
Input Voltage (Vac)	120-277
Frequency (Hz)	50/60
Luminous Flux (lm)	20000	30000	40000	46800
CRI	>80
Power Factor	≥0.95
CCT (K)	3000/4000/6000
Beam Angle (°)	60/85/115
IP	65
IK	8
Operating Temp. (°C)	-30 to +50
Operating Humidity (%)	5-90
Housing Material	Aluminium alloy body
Finishing	Powder-coating black (RAL9017)
Optics	Polycarbonate lens
Weight (kg)	1.8	2	2.3	2.6
Rated Life Span (hrs)	>100,000 (L80B20@25°c)
Electrical Class	Class 1
Driver options	ON/OFF, 1-10v dmming

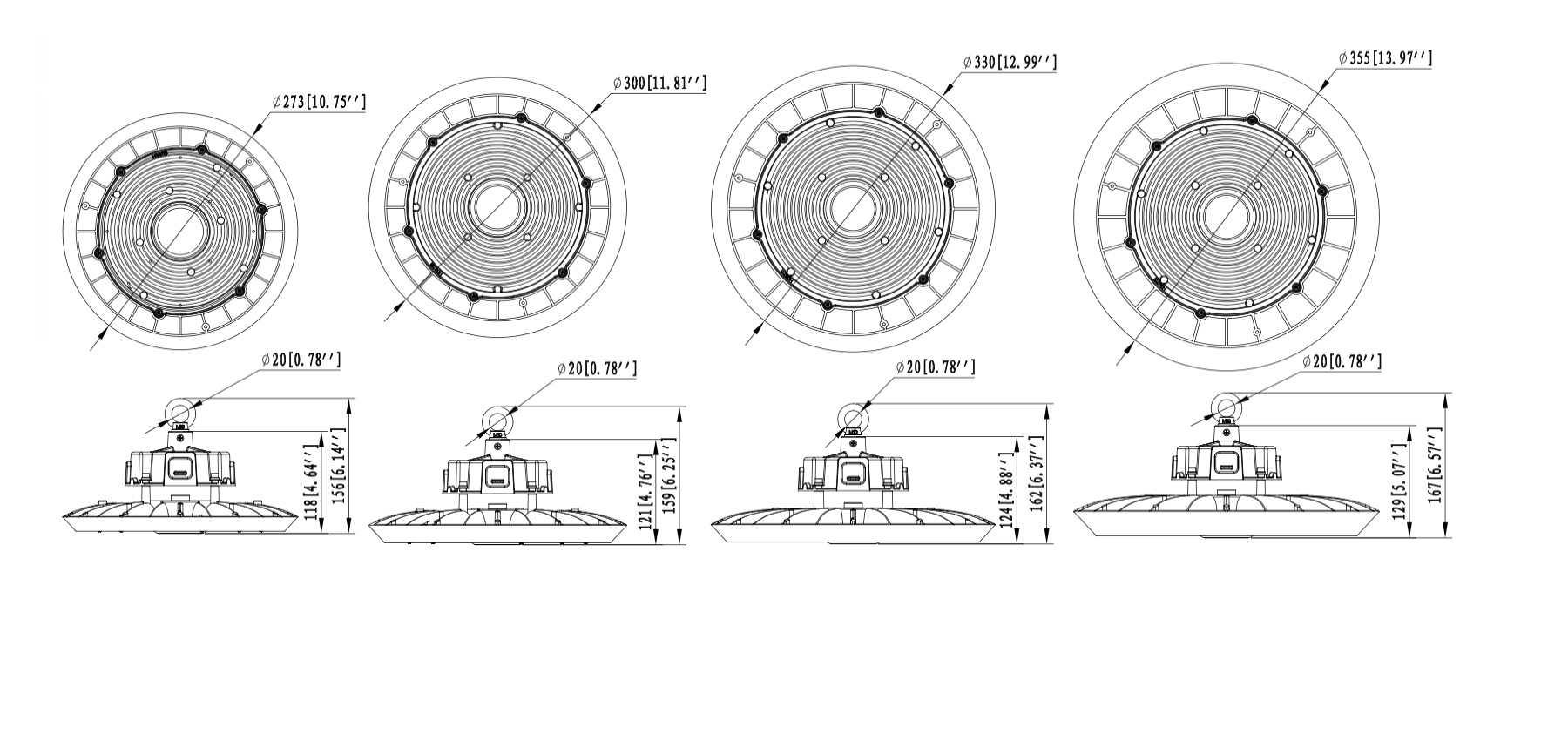

Dimensions

UFA Dim

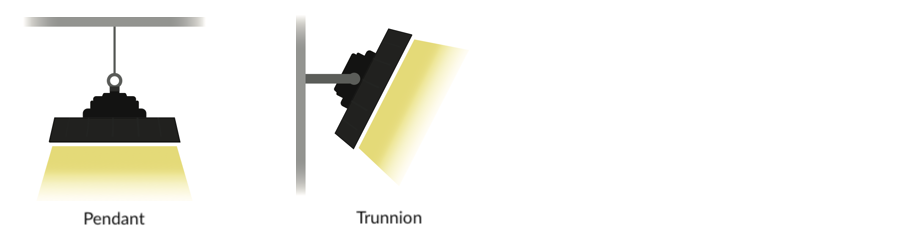

Mounting Methods

UFA Mount

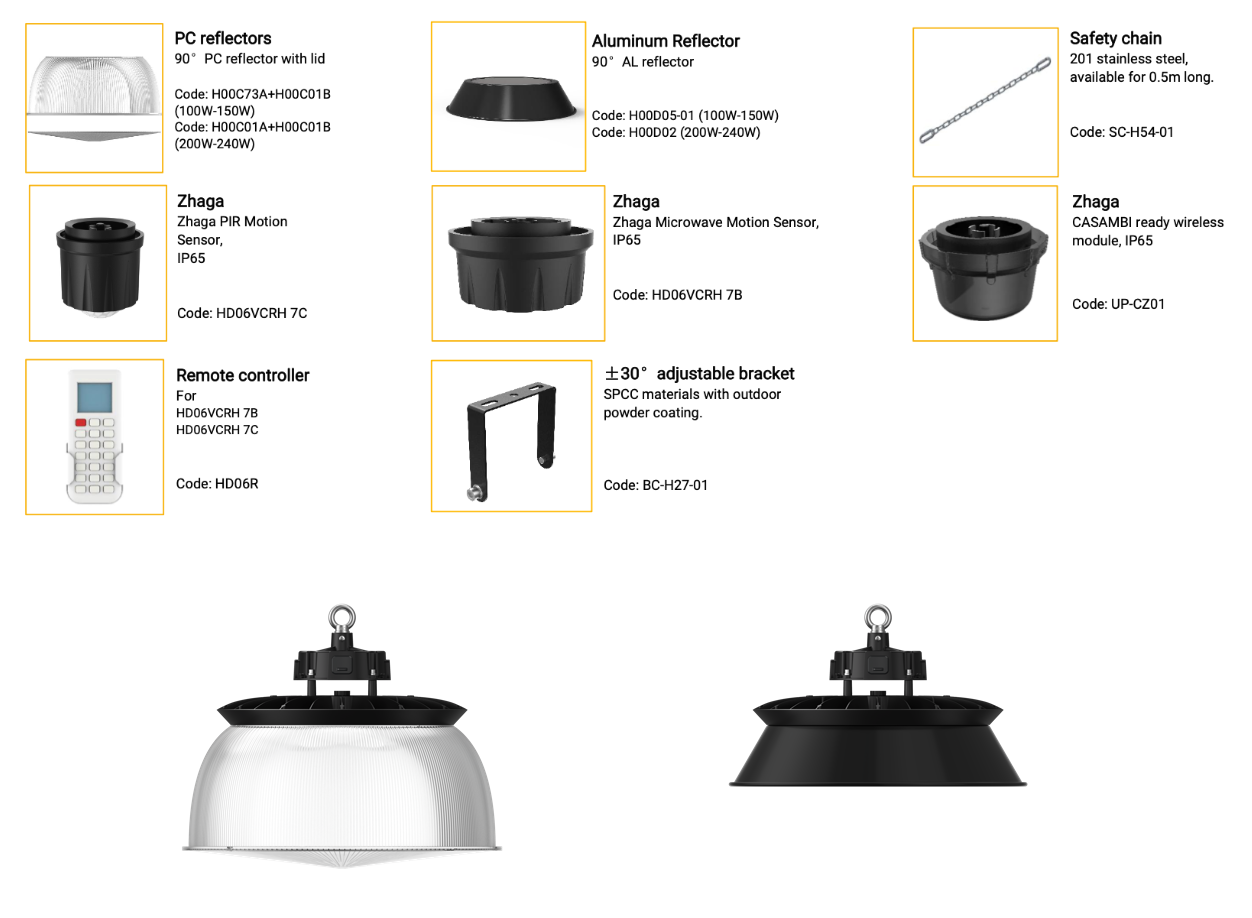

Accessories

Product Datasheet

UTOFIA UFA

(showing 8 product SKUs)

Model Number	Size	Nominal Power	Luminous Flux (lm)	Efficacy (lm/W)	CCT	IES
UFA100		100/80/60	16000		3000/4000/6000
UFA150		150/120/90	24000		3000/4000/6000
UFA200		200/160/120	32000		3000/4000/6000
UFA240		240/190/145	38400		3000/4000/6000
UFA100H		100/80/60	20000		3000/4000/6000
UFA150H		150/120/90	30000		3000/4000/6000
UFA200H		200/160/120	40000		3000/4000/6000
UFA240H		240/190/145	46800		3000/4000/6000
