Item 1 of 1
TWL2

Features

  • Eco-friendly LED product for energy saving and visual consistency.

  • Modular design for easy maintenance with future proofing.

  • Propriety lens design for high LOR.

  • Reliable thermal management for long life and lumen maintenance.

IP65
Outdoor
Dim Optional

Suitable Applications

Specifications
Expand
TWL2TWL212 TWL218 TWL224 TWL236
Nominal Power (W)12182436
Input Voltage (Vdc)24
Luminous Flux (lm)960144019202880
CCT (K)2700/3000/4000/6500
CRI≥80
SDCM≤3 step MacAdam
Beam Angle (°)15/30/45/60/10x60
Power Factor≥0.9
THD (%)≤20
IP65
Operating Temp. (°C)0 to +45
Housing MaterialAluminium fitting with tempered glass
LensPC
OpticsFrosted PC
End CapAluminium
Dimensions LxWxH (mm)1000 x 25 x 721000 x 30 x 721000 x 36 x 74
Rated Life Span (hrs)>50000
Driver optionsON/OFF, 1-10v dmming, DALI

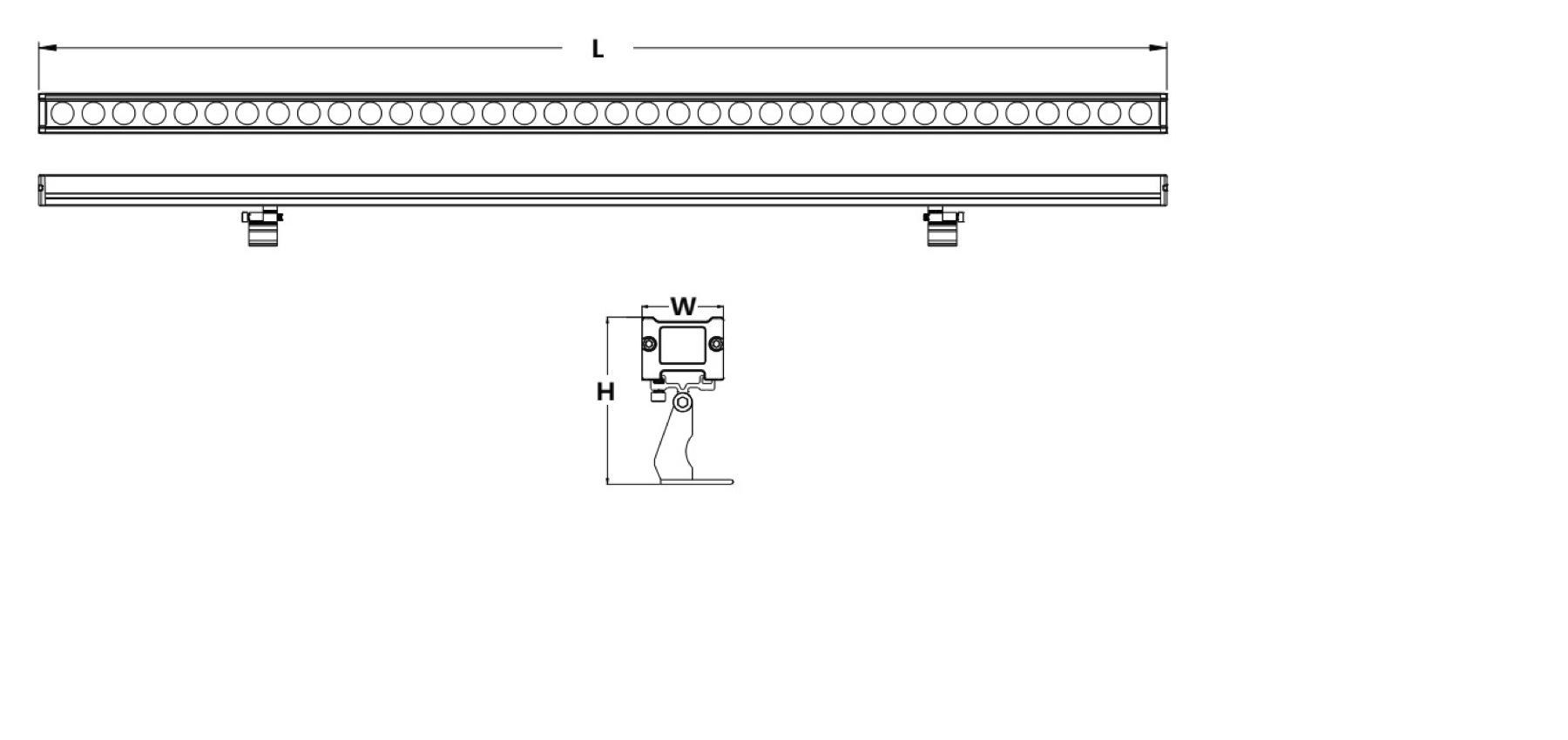

Dimensions
Expand
TWL2 Dim
Mounting Methods
Expand
TWL2 Mount

Product Datasheet

TWINK TWL2
(showing 4 product SKUs)
Nominal Power
Luminous Flux (lm)
CCT
Model Number
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
CCT
Sort
IES
TWL212 129602700/3000/4000/6500
TWL218 1814402700/3000/4000/6500
TWL224 2419202700/3000/4000/6500
TWL236 3628802700/3000/4000/6500
