SWZ

Features

  • Eco-friendly LED product for energy saving

  • Modular design for easy maintenance with future proofing.

  • Reliable thermal management for long life and lumen maintenance.

Dim Optional
Indoor
IP20

Suitable Applications

Specifications
Expand
SWZSWZ205 SWZ308 SWZ312
Nominal Power (W)5 8 12
Luminous Flux (lm)450 720 900
Dimension DiaxH (mm)63x75 87x92
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Power Factor≥0.90
CCT (K)3000/4000/6000
CRI>90
SDCM≤3 step MacAdam
Beam Angle (°)15/24/38
Cut-out (mm)5575
IP20
Rated Life Span (hrs)>50000
HousingDie-cast aluminium, white trim, Adjustable angle 30°, rotation 355°, stainless steel clips
OpticsPMMA lens
DistributionNarrow & medium beams
ReflectorDark reflector (DR), silver (SR), optional black
Driver optionON/OFF, Trailing-edge, 1-10v, DALI
SWZSWZ315 SWZ420 SWZ425
Nominal Power (W)15 20 25
Luminous Flux (lm)1350 1800 2250
Dimension DiaxH (mm)87x92 105x106
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Power Factor≥0.90
CCT (K)3000/4000/6000
CRI>90
SDCM≤3 step MacAdam
Beam Angle (°)15/24/38
Cut-out (mm)7595
IP20
Rated Life Span (hrs)>50000
HousingDie-cast aluminium, white trim, Adjustable angle 30°, rotation 355°, stainless steel clips
OpticsPMMA lens
DistributionNarrow & medium beams
ReflectorDark reflector (DR), silver (SR), optional black
Driver optionON/OFF, Trailing-edge, 1-10v, DALI

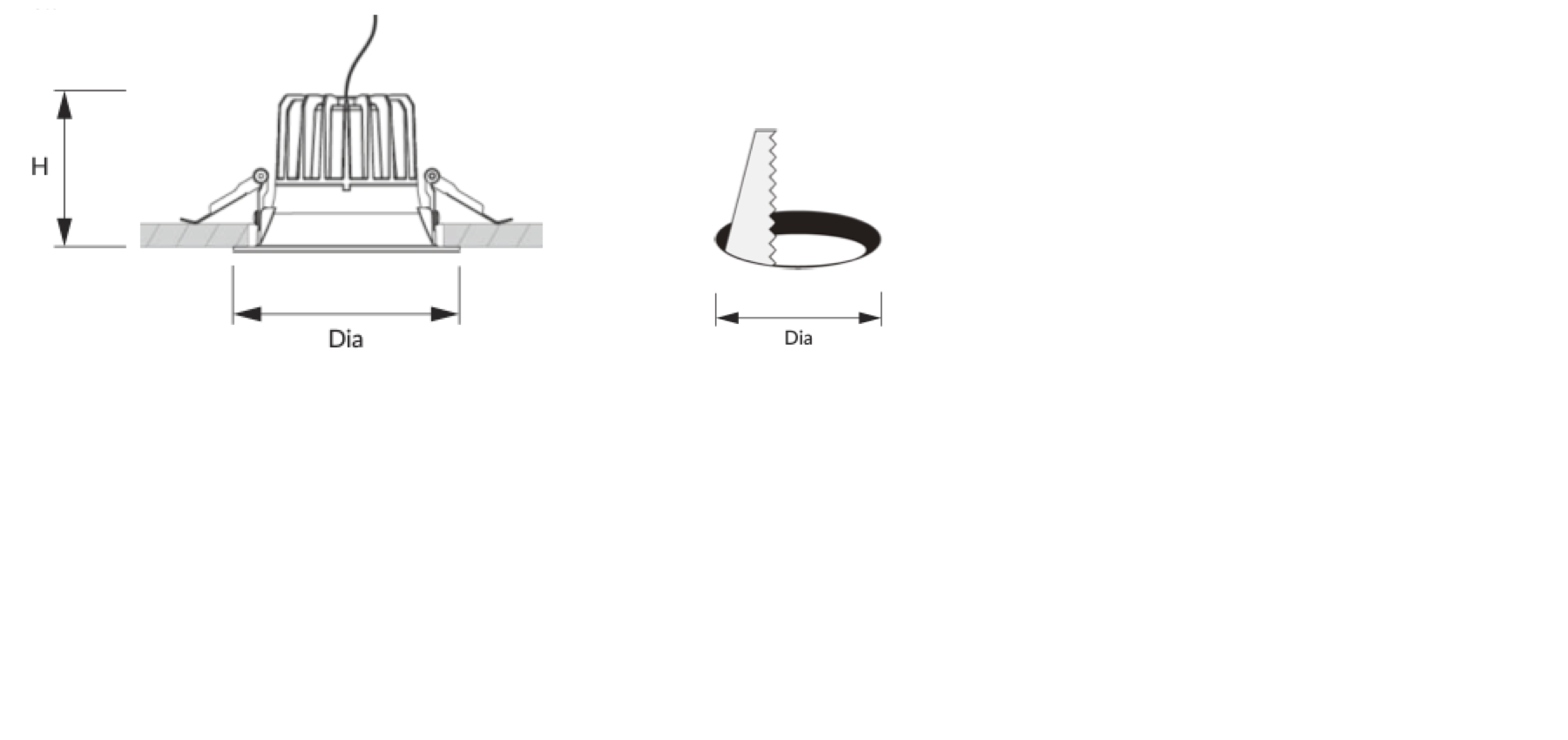

Dimensions
Expand
SWZ Dim

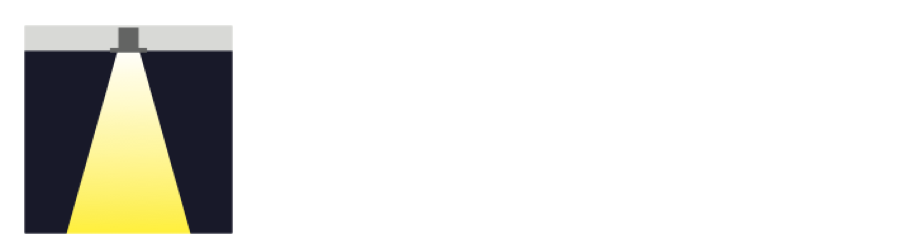

Mounting Methods
Expand
SWZ Mount

Product Datasheet

SWAZI SWZ
(showing 6 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
CCT
Sort
IES
SWZ205 63x75 5 450 3000/4000/6000
SWZ308 87x92 8 720 3000/4000/6000
SWZ312 87x92 12 900 3000/4000/6000
SWZ315 87x92 15 1350 3000/4000/6000
SWZ420 105x106 20 1800 3000/4000/6000
SWZ425 105x106 25 2250 3000/4000/6000
