SPOTSPR6Our eco‑friendly LED surface canister downlight delivers energy savings with visual consistency, a modular design for easy maintenance and future‑proofing, proprietary lens technology for superior light output ratio, and reliable thermal management ensuring long life with consistent lumen performance
Item 1 of 1
Features
Eco-friendly LED product for energy saving and visual consistency.
Modular design for easy maintenance with future proofing.
Propriety lens design for high LOR.
Reliable thermal management for long life and lumen maintenance.
Suitable Applications
Item 1 of 3
Specifications
| SPR6 | SPR6A209 | SPR6A214 | SPR6A319 |
|---|---|---|---|
| Nominal Power (W) | 9 | 14 | 19 |
| Dimensions DiaxH (mm) | 75x100 | 95x100 | |
| Input Voltage (Vac) | 220-240 | ||
| Frequency (Hz) | 50/60 | ||
| Luminous Flux (lm) | 1430/1475/1490 | 1905/1960/1980 | 2875/2960/2990 |
| CCT (K) | 3000/4000/5700 | ||
| CRI | >80, >90(optional) | ||
| SDCM | ≤3 step MacAdam | ||
| Beam Angle (°) | 20/40 | ||
| Power Factor | >0.9 | ||
| Rated Life Time (hrs) | >50,000 | ||
| IP | IP20/IP65 | ||
| Housing | Die-cast aluminium, white trim, stainless steel clips | ||
| Light Distribution | Narrow, medium, wide beams | ||
| Optics | PMMA prismatic LENS, glare control | ||
| Reflector | PMMA Lens | ||
| SPR6 | SPR6209IP65 | SPR6214IP65 | SPR6319IP65 |
|---|---|---|---|
| Nominal Power (W) | 9 | 14 | 19 |
| Dimensions DiaxH (mm) | 75x100 | 95x100 | |
| Input Voltage (Vac) | 220-240 | ||
| Frequency (Hz) | 50/60 | ||
| Luminous Flux (lm) | 1435/1475/1490 | 1905/1960/1980 | 2875/2960/2990 |
| CCT (K) | 3000/4000/5700 | ||
| CRI | >80, >90(optional) | ||
| SDCM | ≤3 step MacAdam | ||
| Beam Angle (°) | 20/40 | ||
| Power Factor | >0.9 | ||
| Rated Life Time (hrs) | >50,000 | ||
| IP | IP20/IP65 | ||
| Housing | Die-cast aluminium, white trim, stainless steel clips | ||
| Light Distribution | Narrow, medium, wide beams | ||
| Optics | PMMA prismatic LENS, glare control | ||
| Reflector | PMMA Lens | ||
| SPR6 | SPR6309 | SPR6314 | SPR6319 | SPR6423 |
|---|---|---|---|---|
| Nominal Power (W) | 9 | 14 | 19 | 23 |
| Dimensions DiaxH (mm) | 75x152 | 95x152 | 115x152 | |
| Input Voltage (Vac) | 220-240 | |||
| Frequency (Hz) | 50/60 | |||
| Luminous Flux (lm) | 1430/1475/1490 | 1905/1960/1980 | 2875/2960/2990 | 3355/3455/3485 |
| CCT (K) | 3000/4000/5700 | |||
| CRI | >80, >90(optional) | |||
| SDCM | ≤3 step MacAdam | |||
| Beam Angle (°) | 20/40 | |||
| Power Factor | >0.9 | |||
| Rated Life Time (hrs) | >50,000 | |||
| IP | IP20/IP65 | |||
| Housing | Die-cast aluminium, white trim, stainless steel clips | |||
| Light Distribution | Narrow, medium, wide beams | |||
| Optics | PMMA prismatic LENS, glare control | |||
| Reflector | PMMA Lens | |||
| SPR6 | SPR6431 | SPR6541 | SPR6654 | SPR6863 |
|---|---|---|---|---|
| Nominal Power (W) | 31 | 41 | 54 | 63 |
| Dimensions DiaxH (mm) | 115x152 | 140x162 | 170x182 | 205x212 |
| Input Voltage (Vac) | 220-240 | |||
| Frequency (Hz) | 50/60 | |||
| Luminous Flux (lm) | 4220/4345/4390 | 5485/5645/5700 | 7535/7760/7835 | 8310/8555/8640 |
| CCT (K) | 3000/4000/5700 | |||
| CRI | >80, >90(optional) | |||
| SDCM | ≤3 step MacAdam | |||
| Beam Angle (°) | 20/40 | |||
| Power Factor | >0.9 | |||
| Rated Life Time (hrs) | >50,000 | |||
| IP | IP20/IP65 | |||
| Housing | Die-cast aluminium, white trim, stainless steel clips | |||
| Light Distribution | Narrow, medium, wide beams | |||
| Optics | PMMA prismatic LENS, glare control | |||
| Reflector | PMMA Lens | |||

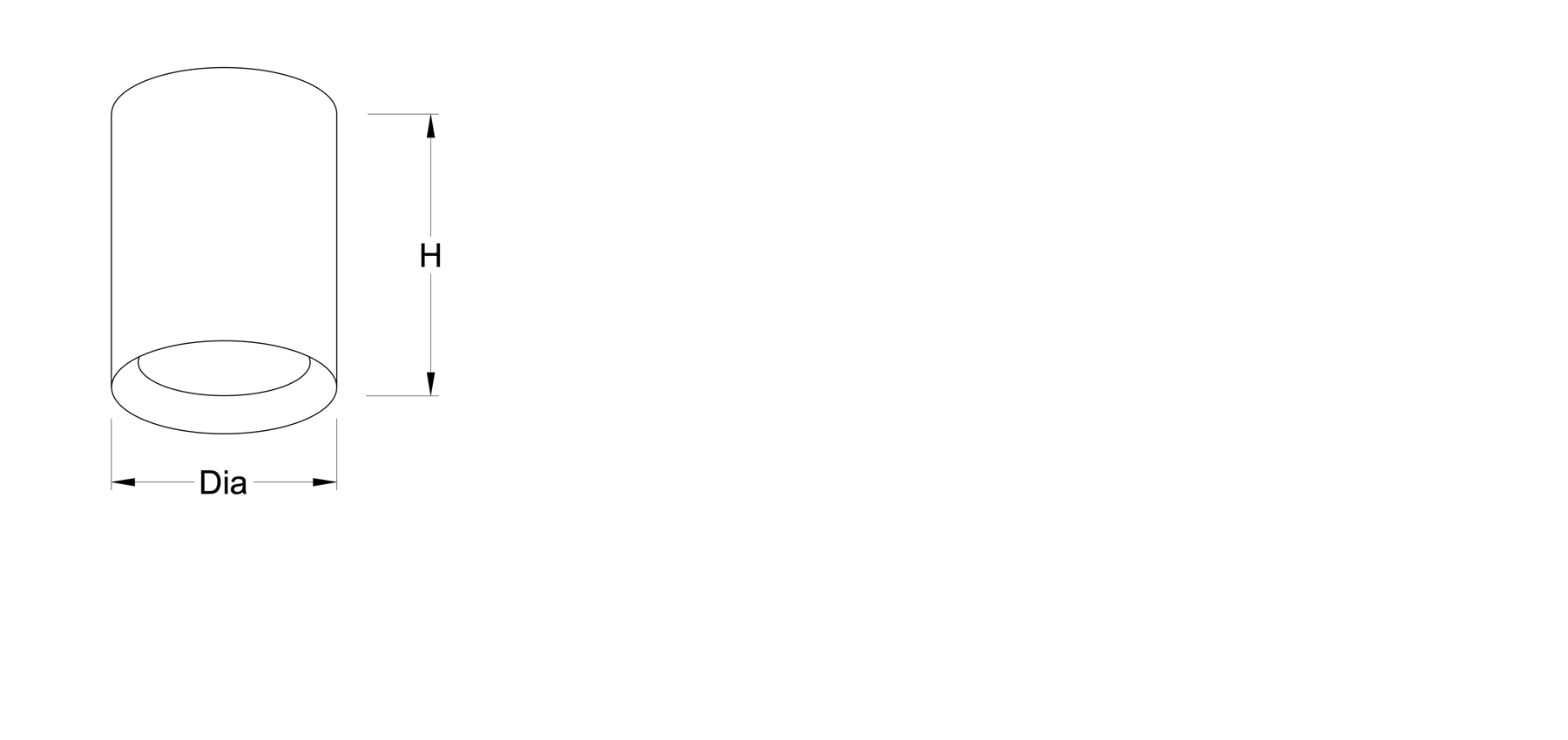

Dimensions

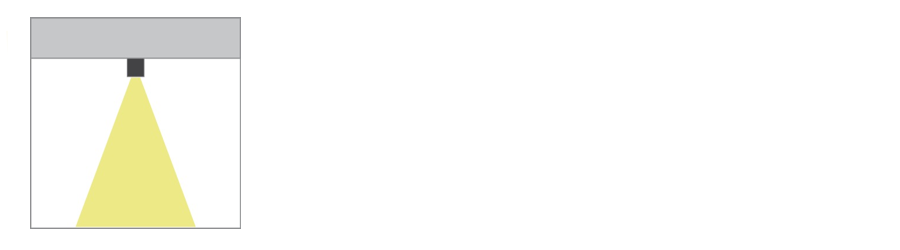

Mounting Methods
Product Datasheet
SPOT SPR6
(showing 14 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | CCT | IES |
|---|---|---|---|---|---|
| SPR6A209 | 75x100 | 9 | 1430/1475/1490 | 3000/4000/5700 | |
| SPR6A214 | 75x100 | 14 | 1905/1960/1980 | 3000/4000/5700 | |
| SPR6A319 | 95x100 | 19 | 2875/2960/2990 | 3000/4000/5700 | |
| SPR6209IP65 | 75x100 | 9 | 1435/1475/1490 | 3000/4000/5700 | |
| SPR6214IP65 | 75x100 | 14 | 1905/1960/1980 | 3000/4000/5700 | |
| SPR6319IP65 | 95x100 | 19 | 2875/2960/2990 | 3000/4000/5700 | |
| SPR6309 | 75x152 | 9 | 1430/1475/1490 | 3000/4000/5700 | |
| SPR6314 | 75x152 | 14 | 1905/1960/1980 | 3000/4000/5700 | |
| SPR6319 | 95x152 | 19 | 2875/2960/2990 | 3000/4000/5700 | |
| SPR6423 | 115x152 | 23 | 3355/3455/3485 | 3000/4000/5700 | |
| SPR6431 | 115x152 | 31 | 4220/4345/4390 | 3000/4000/5700 | |
| SPR6541 | 140x162 | 41 | 5485/5645/5700 | 3000/4000/5700 | |
| SPR6654 | 170x182 | 54 | 7535/7760/7835 | 3000/4000/5700 | |
| SPR6863 | 205x212 | 63 | 8310/8555/8640 | 3000/4000/5700 |
