SIGMASMPSleek and modern, these slim bulkhead lights combine style with practicality. Designed with energy efficiency in mind, they deliver reliable illumination while minimizing power consumption. Crafted from durable plastic, they offer longevity and resilience, making them perfect for diverse lighting applications.
Item 1 of 1
Features
- Oval and round shape available
- Vandal resistant for indoor and outdoor use
- Reliable thermal management for long life and lumen maintenance.
- LED vision feature incorporated LED module
- Corrosion resistant
Suitable Applications
Item 1 of 5
Specifications
| Sigma SMP | SMP15V | SMP20V | SMP15R | SMP20R |
|---|---|---|---|---|
| Nominal Power (W) | 15 | 20 | 15 | 20 |
| LED Lumen (lm) | 1275 | 1700 | 1275 | 1700 |
| Dimension L x W x H | 215 x 115 x 65 | 215 x 145 x 65 | 165 x 65 | 220 x 65 |
| Input Voltage (Vac) | 220-240 | |||
| Frequency (Hz) | 50/60 | |||
| Efficacy (lm/W) | 85 | |||
| Colour Temp. (K) | 3000/4000/6000 | |||
| Type. CRI (Ra) | >80 | |||
| SDCM | ≤6 step MacAdam | |||
| Beam Angle (°) | 140 | |||
| Power Factor | >0.9 | |||
| Rated Life Span | >30,000hrs | |||
| IP Rating | IP65 | |||
| Housing | ABS | |||
| Optics | PC diffuser | |||
| Casing Colour | White / Black | |||
V=Oval shape, R=Round shape

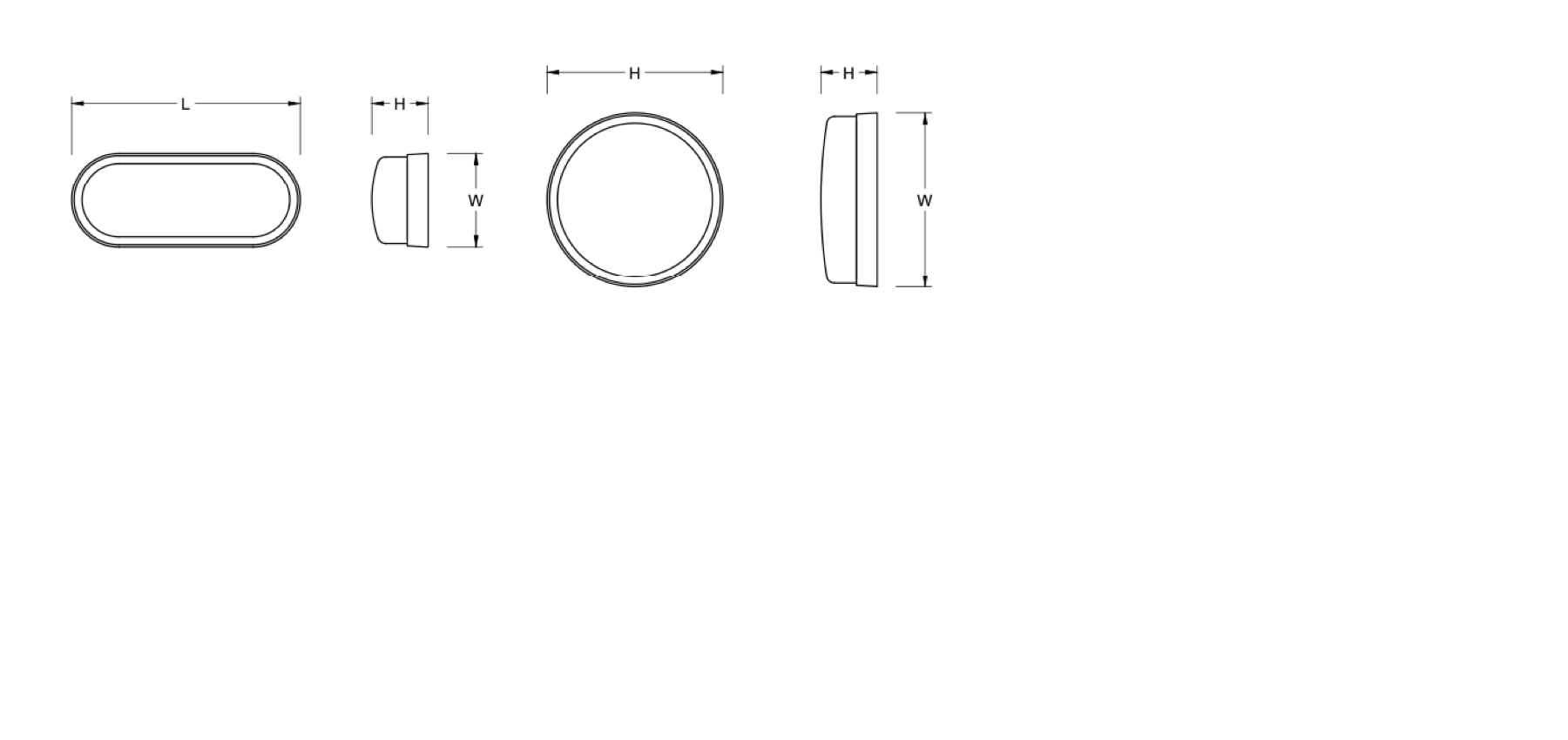

Dimensions

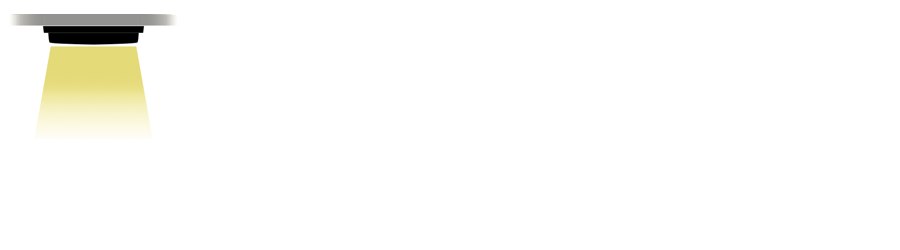

Mounting Methods
Product Datasheet
SIGMA SMP
(showing 4 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| SMP15V | 215 x 115 x 65 | 15 | 1275 | 85 | 3000/4000/6000 | |
| SMP20V | 215 x 145 x 65 | 20 | 1700 | 85 | 3000/4000/6000 | |
| SMP15R | 165 x 65 | 15 | 1275 | 85 | 3000/4000/6000 | |
| SMP20R | 220 x 65 | 20 | 1700 | 85 | 3000/4000/6000 |
