SIGMASMASleek and modern, these slim bulkhead lights seamlessly blend style with functionality. Engineered for energy efficiency, they provide reliable illumination while reducing power consumption. Crafted from robust and durable die-cast aluminium, they ensure longevity and resilience, making them ideal for diverse lighting applications.
Item 1 of 1
Features
- Oval shape glass diffuser
- Weatherproof with IP65 rating
- IK08 vandal resistant for outdoor use
- Reliable thermal management for long life and lumen maintenance.
- LED vision feature incorporated LED module
- Robust die-casted aluminium body with guard
Suitable Applications
Item 1 of 5
Specifications
| Sigma SMA | SMA12 | SMA20 | SMA24 |
|---|---|---|---|
| Nominal Power (W) | 12* | 20 | 24 |
| LED Lumen (lm) | 640 | 1600 | 1920 |
| Colour Temp. (K) | 3000/4000/6000 | ||
| Beam Angle (°) | 120 | ||
| Dimension L x W x H | 210 x 90 x 110 | 250 x 100 x 135 | 270 x 100 x 160 |
| Input Voltage (Vac) | 220-240 | ||
| Frequency (Hz) | 50/60 | ||
| Efficacy (lm/W) | 80 | ||
| Type. CRI (Ra) | >80 | ||
| Power Factor | >0.9 | ||
| SDCM | ≤5 step MacAdam | ||
| Rated Life Span | >30,000hrs | ||
| IP Rating | IP65 | ||
| IK Rating | IK08 | ||
| Housing | Aluminium & stainless steel screws | ||
| Optics | Glass | ||
| body_colour | White / Black | ||
* Adjustable from 8 to 12w

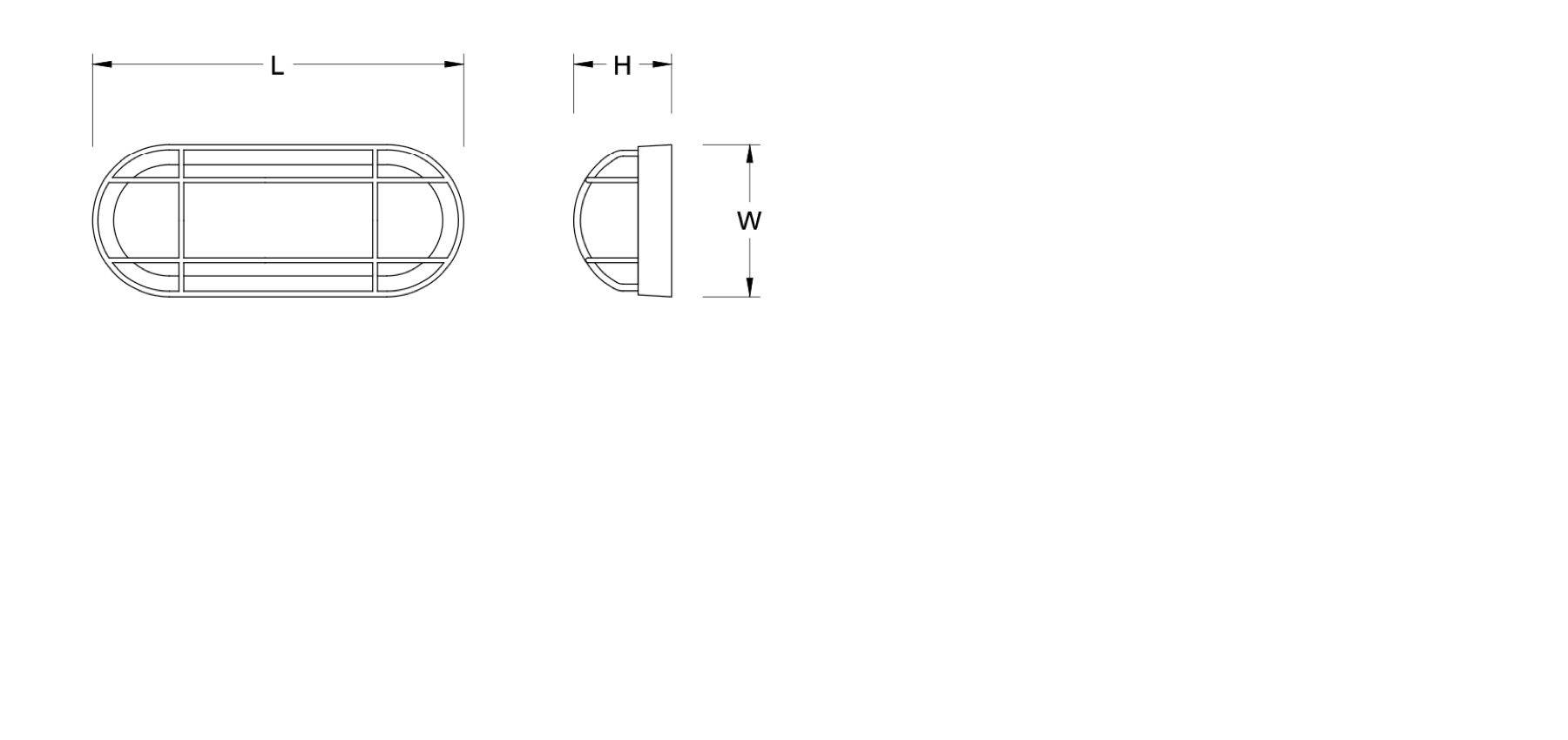

Dimensions
Mounting Methods
Product Datasheet
SIGMA SMA
(showing 3 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| SMA12 | 210 x 90 x 110 | 12* | 640 | 80 | 3000/4000/6000 | |
| SMA20 | 250 x 100 x 135 | 20 | 1600 | 80 | 3000/4000/6000 | |
| SMA24 | 270 x 100 x 160 | 24 | 1920 | 80 | 3000/4000/6000 |
