PHOEBEThe diffuser ensures uniform light distribution as well as minimizes glare, making it an excellent choice for spaces where visual comfort is a priority. With superior brightness and efficiency, Pheobe caters to a wide array of lighting needs. It promises longevity and low maintenance with a long-life LED source rated for 50,000 hours, including both surface and pendant mounting.
Features
- Enhanced performance
- White powder coated mild steel body
- Opalised polycarbonate diffuser
- Long life 50,000 hrs LED
- Quick and easy installation

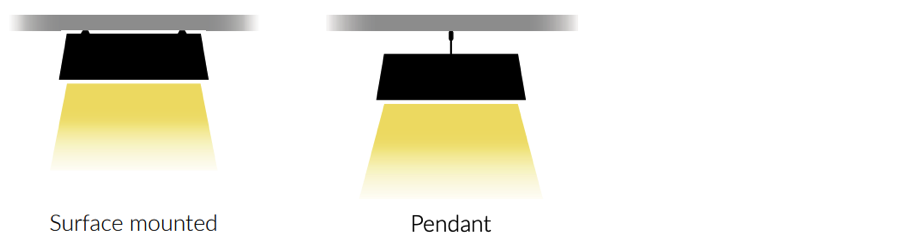

- Suitable for surface or pendant mount
Suitable Applications
Model | PBD210 RBLxK | PBD220 RBLxK | PBD420 RBLxK | PBD435 RBLxK | PBW210 RBLxK | PBW220 RBLxK | PBW420 RBLxK | PBW435 RBLxK |
|---|---|---|---|---|---|---|---|---|
Format | Diffused | Wired Guard | ||||||
Nominal Power (W) | 10 | 20 | 25 | 35 | 10 | 20 | 20 | 35 |
Input Voltage | 220 – 240 VAC 50 / 60 Hz | |||||||
Luminous Flux (lm) | 1255 | 1760 | 2545 | 3550 | 1260 | 1780 | 2530 | 3570 |
Efficacy (lm/W) | 126 | 88 | 85 | 100 | 126 | 89 | 127 | 102 |
CRI | > 80 | |||||||
Power Factor | ≥ 0.95 | |||||||
Colour Temp. (K) | 3000 / 4000 / 6500K | |||||||
LED Life L70B50 (hr) | > 50,000 | |||||||
Ambient Temp. ta (°C) | 35 | |||||||
Weight (kg) | 1.38 | 1.38 | 2.3 | 2.3 | 1.38 | 1.38 | 2.3 | 2.3 |
“x” denotes CCT, 3 = 3000K ; 4 = 4000K ; 6 = 6500K
Product Datasheet

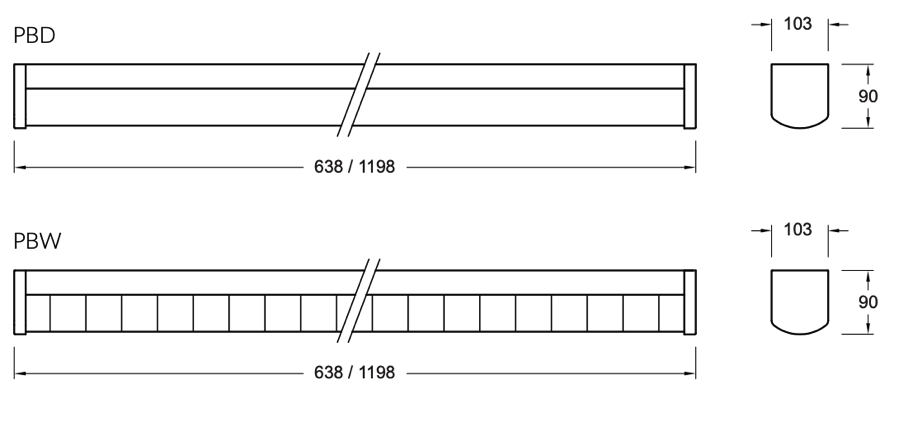

Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| PBD210RBL3K | 638 x 103 x 90 | 10 | 1255 | 126 | 3000 | |
| PBD210RBL4K | 638 x 103 x 90 | 10 | 1255 | 126 | 4000 | |
| PBD210RBL6K | 638 x 103 x 90 | 10 | 1255 | 126 | 6500 | |
| PBD220RBL3K | 638 x 103 x 90 | 20 | 1760 | 88 | 3000 | |
| PBD220RBL4K | 638 x 103 x 90 | 20 | 1760 | 88 | 4000 | |
| PBD220RBL6K | 638 x 103 x 90 | 20 | 1760 | 88 | 6500 | |
| PBD420RBL3K | 1198 x 103 x 90 | 25 | 2545 | 85 | 3000 | |
| PBD420RBL4K | 1198 x 103 x 90 | 25 | 2545 | 85 | 4000 | |
| PBD420RBL6K | 1198 x 103 x 90 | 25 | 2545 | 85 | 6500 | |
| PBD435RBL3K | 1198 x 103 x 90 | 25 | 3550 | 100 | 3000 | |
| PBD435RBL4K | 1198 x 103 x 90 | 25 | 3550 | 100 | 4000 | |
| PBD435RBL6K | 1198 x 103 x 90 | 25 | 3550 | 100 | 6500 | |
| PBW210RBL3K | 638 x 103 x 90 | 10 | 1260 | 126 | 3000 | |
| PBW210RBL4K | 638 x 103 x 90 | 10 | 1260 | 126 | 4000 | |
| PBW210RBL6K | 638 x 103 x 90 | 10 | 1260 | 126 | 6500 | |
| PBW220RBL3K | 638 x 103 x 90 | 20 | 1780 | 89 | 3000 | |
| PBW220RBL4K | 638 x 103 x 90 | 20 | 1780 | 89 | 4000 | |
| PBW220RBL6K | 638 x 103 x 90 | 20 | 1780 | 89 | 6500 | |
| PBW420RBL3K | 1198 x 103 x 90 | 25 | 2530 | 127 | 3000 | |
| PBW420RBL4K | 1198 x 103 x 90 | 25 | 2530 | 127 | 4000 | |
| PBW420RBL6K | 1198 x 103 x 90 | 25 | 2530 | 127 | 6500 | |
| PBW435RBL3K | 1198 x 103 x 90 | 25 | 3570 | 102 | 3000 | |
| PBW435RBL4K | 1198 x 103 x 90 | 25 | 3570 | 102 | 4000 | |
| PBW435RBL6K | 1198 x 103 x 90 | 25 | 3570 | 102 | 6500 |
