PANPNZA high-performance CRI 90 LED panel that offers low-glare lighting thanks to a microprism diffuser, ensuring smooth, even illumination. With flicker-free operation and exceptional thermal management, Pan panels are able to offer years of reliable and trouble-free service.
Item 1 of 1
Features
- Recessed mount back-lit panel
- Extruded aluminium frame
- Steel back plate for excellent thermal management
- Low-glare opalised polystyrene microprism diffuser
- Remote flicker-free driver
- Quick-connect DC plug and socket
- CRI >90
- Slim profile 35 mm
- Complies with J6 and UGR19 (based on typical office simulation)
Suitable Applications
Item 1 of 3
Specifications
Model | PNZ430-R9x | PNZ435-R9x | PNZW230-R9x | PNZW235-R9x |
|---|---|---|---|---|
Nominal Power (W) | 30 | 35 | 30 | 35 |
Input Voltage | 220 – 240 VAC 50 / 60 Hz | |||
Luminaire Flux (lm)* | 3391 | 3852 | 3141 | 3568 |
Luminaire Efficacy (lm/W)* | 113 | 112 | 105 | 105 |
CRI | > 90 | |||
Power Factor | > 0.90 | |||
SDCM | ≤ 3 | |||
Colour Temp. (K) | 3000 / 4000 / 5000 / 6000 | |||
UGR** | < 19 | |||
Luminaire Rated Life (hrs) | 50,000 | |||
Operating Temp. (°C) | -20 to +40 | |||
Weight (kg) | 2 | 2.5 | 2.5 | 2.5 |
“x” denotes CCT, 3 = 3000K ; 4 = 4000K ; 5 = 5000K ; 6 = 6000K
*Specifications shown for 4000K
Lighting Distribution

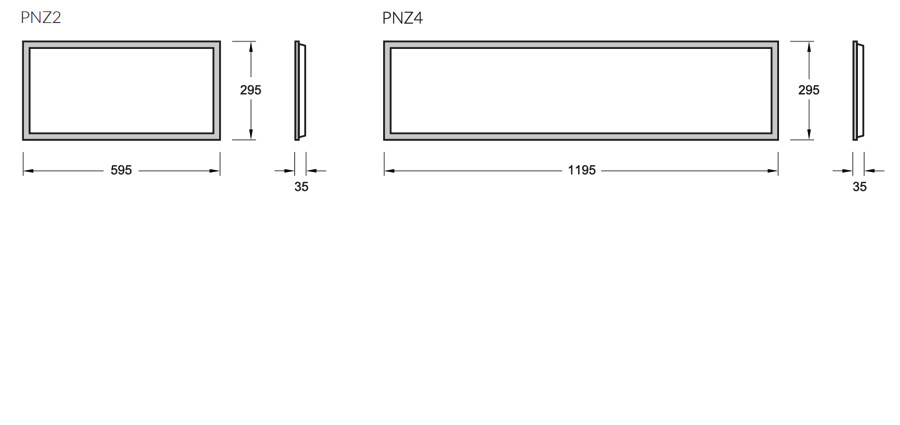

Dimensions

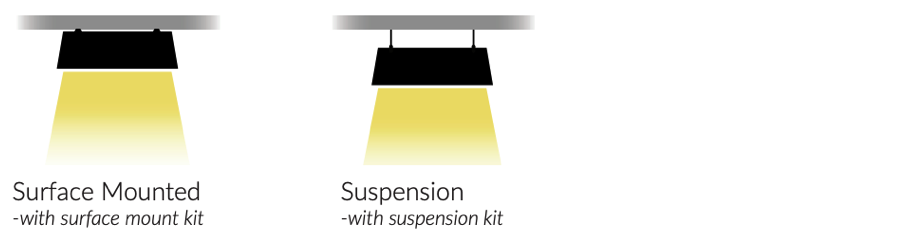

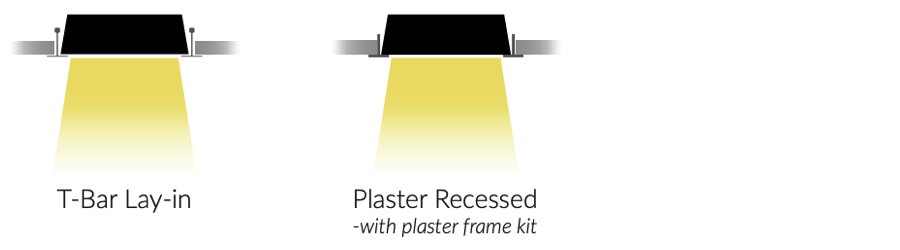

Mounting Methods
Product Datasheet
PAN PNZ
(showing 48 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| PNZ210-R93 | 600x300 | 10 | 1019 | 101 | 3000 |  |
| PNZ210-R94 | 600x300 | 10 | 1068 | 106 | 4000 | |
| PNZ210-R95 | 600x300 | 10 | 1090 | 108 | 5000 | |
| PNZ210-R96 | 600x300 | 10 | 1068 | 106 | 6000 | |
| PNZ215-R93 | 600x300 | 15 | 1433 | 96 | 3000 | |
| PNZ215-R94 | 600x300 | 15 | 1503 | 101 | 4000 | |
| PNZ215-R95 | 600x300 | 15 | 1533 | 103 | 5000 | |
| PNZ215-R96 | 600x300 | 15 | 1503 | 101 | 6000 | |
| PNZ220-R93 | 600x300 | 20 | 2001 | 102 | 3000 | |
| PNZ220-R94 | 600x300 | 20 | 2099 | 107 | 4000 | |
| PNZ220-R95 | 600x300 | 20 | 2140 | 109 | 5000 | |
| PNZ220-R96 | 600x300 | 20 | 2099 | 107 | 6000 | |
| PNZ425-R93 | 1200x300 | 25 | 2698 | 109 | 3000 | |
| PNZ425-R94 | 1200x300 | 25 | 2830 | 114 | 4000 | |
| PNZ425-R95 | 1200x300 | 25 | 2886 | 116 | 5000 | |
| PNZ425-R96 | 1200x300 | 25 | 2830 | 114 | 6000 | |
| PNZ430-R93 | 1200x300 | 30 | 3234 | 107 | 3000 | |
| PNZ430-R94 | 1200x300 | 30 | 3391 | 113 | 4000 | |
| PNZ430-R95 | 1200x300 | 30 | 3459 | 115 | 5000 | |
| PNZ430-R96 | 1200x300 | 30 | 3391 | 113 | 6000 | |
| PNZ435-R93 | 1200x300 | 35 | 3673 | 107 | 3000 | |
| PNZ435-R94 | 1200x300 | 35 | 3852 | 112 | 4000 | |
| PNZ435-R95 | 1200x300 | 35 | 3928 | 115 | 5000 | |
| PNZ435-R96 | 1200x300 | 35 | 3852 | 112 | 6000 | |
| PNZW225-R93 | 600x600 | 25 | 2504 | 104 | 3000 | |
| PNZW225-R94 | 600x600 | 25 | 2626 | 109 | 4000 | |
| PNZW225-R95 | 600x600 | 25 | 2678 | 111 | 5000 | |
| PNZW225-R96 | 600x600 | 25 | 2626 | 109 | 6000 | |
| PNZW230-R93 | 600x600 | 30 | 2995 | 100 | 3000 | |
| PNZW230-R94 | 600x600 | 30 | 3141 | 105 | 4000 | |
| PNZW230-R95 | 600x600 | 30 | 3203 | 107 | 5000 | |
| PNZW230-R96 | 600x600 | 30 | 3141 | 105 | 6000 | |
| PNZW235-R93 | 600x600 | 35 | 3402 | 100 | 3000 | |
| PNZW235-R94 | 600x600 | 35 | 3568 | 105 | 4000 | |
| PNZW235-R95 | 600x600 | 35 | 3639 | 107 | 5000 | |
| PNZW235-R96 | 600x600 | 35 | 3568 | 105 | 6000 | |
| PNZW440-R93 | 1200x600 | 40 | 4293 | 109 | 3000 | |
| PNZW440-R94 | 1200x600 | 40 | 4502 | 115 | 4000 | |
| PNZW440-R95 | 1200x600 | 40 | 4592 | 117 | 5000 | |
| PNZW440-R96 | 1200x600 | 40 | 4502 | 115 | 6000 | |
| PNZW450-R93 | 1200x600 | 50 | 5161 | 107 | 3000 | |
| PNZW450-R94 | 1200x600 | 50 | 5412 | 114 | 4000 | |
| PNZW450-R95 | 1200x600 | 50 | 5519 | 116 | 5000 | |
| PNZW450-R96 | 1200x600 | 50 | 5412 | 114 | 6000 | |
| PNZW460-R93 | 1200x600 | 60 | 6401 | 110 | 3000 | |
| PNZW460-R94 | 1200x600 | 60 | 6712 | 115 | 4000 | |
| PNZW460-R95 | 1200x600 | 60 | 6846 | 117 | 5000 | |
| PNZW460-R96 | 1200x600 | 60 | 6712 | 115 | 6000 | |
