PANPNU
Pan series luminaires are configured to fit a range of common T-bar grid sizes and can even be fitted with an optional air-handling frame kit to increase operational versatility. Power ratings from 10W to 60W ensure a place in any grid-based lighting array and provide an optimal blend of performance, reliability and longevity.
Family Datasheet
Product Information

Item 1 of 1

PNU

Features

Uniform light effect and distribution
Various mounting methods (t-bar, plaster & surface)
Reliable thermal management for long life and lumen maintenance
Available in UGR < 19 as an option

Indoor

IP20

Dim Optional

Suitable Applications

Education
Healthcare
Hospitality
Office
Retail
Education
Healthcare
Hospitality
Office
Retail
Education
Healthcare
Hospitality
Office
Retail

Item 1 of 5

Specifications

Pan PNU	PNU2xM	PNUW2xM	PNU4xM	PNUW4xM	PNU2xF	PNUW2xF	PNU4xF	PNUW4xF
Nominal Power (W)	10/15/20	25/30/35/40		40/50/60	10/15/20	25/30/35/40		40/50/60
Dimension LxWxH	595x295x30	595x595x30	1195x295x30	1195x595x30	605x305x30	605x605x30	1205x305x30	1205x605x30
Input Voltage (Vac)	220-240					220-241	220-242	220-243
Frequency (Hz)	50/60
Efficacy (lm/W)	100
Type. CRI (Ra)	>80, >90 (optional)
Power Factor	>0.9
SDCM	≤3 step MacAdam
Colour Temp. (K)	3000 / 4000 / 6000
Rated Life Span	>50,000hrs
IP Rating	IP20
Beam Angle (°)	120
Housing	Extruded aluminium casing and frame
Optics	Opal lens & LGP light guide plate

x denotes power (W) M - metric size (mm) F - Imperial size (ft)

Dimensions

PNU

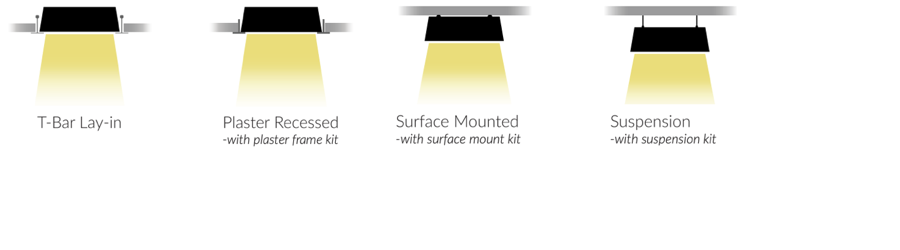

Mounting Methods

PNU mounting

Product Datasheet

PAN PNU

(showing 8 product SKUs)

Model Number	Size	Nominal Power	Luminous Flux (lm)	Efficacy (lm/W)	CCT	IES
PNU2xM	595x295x30	10/15/20		100	3000 / 4000 / 6000
PNUW2xM	595x595x30	25/30/35/40		100	3000 / 4000 / 6000
PNU4xM	1195x295x30	25/30/35/40		100	3000 / 4000 / 6000
PNUW4xM	1195x595x30	40/50/60		100	3000 / 4000 / 6000
PNU2xF	605x305x30	10/15/20		100	3000 / 4000 / 6000
PNUW2xF	605x605x30	25/30/35/40		100	3000 / 4000 / 6000
PNU4xF	1205x305x30	25/30/35/40		100	3000 / 4000 / 6000
PNUW4xF	1205x605x30	40/50/60		100	3000 / 4000 / 6000
