PANPNBPanel PNB's concise and minimalist design doesn't compromise performance. It maintains high levels of lighting performance while blending seamlessly into various settings. Available in a range of colour temperatures, it allows you to create the desired ambience or meet specific lighting requirements. The inclusion of a remote driver for flexible installation and maintenance.
Features
- Uniform light effect
- Integrated steel plate design provides excellent termal management
- Concise design offers high performance
- Available in 3000K, 4000K, 5000K, 6000K
- Remote driver
- Available in dimming version
Suitable Applications
Model | PNB210WxK | PNB215WxK | PNB220WxK |
|---|---|---|---|
Nominal Power (W) | 10 | 15 | 20 |
Input Voltage | 220 – 240 VAC 50 / 60 Hz | ||
Luminaire Flux (lm) | 1000 | 1500 | 2300 |
Luminaire Efficacy (lm/W) | 100 | 100 | 115 |
CRI | > 80 | ||
Power Factor | > 0.90 | ||
SDCM | ≤ 5 | ||
Colour Temp. (K) | 3000 / 4000 / 5000 / 6000 | ||
Luminaire Rated Life (hrs) | 50,000 | ||
Operating Temp. (°C) | -20 to +40 | ||
Weight (kg) | 2.0 | ||
Model | PNB425WxK | PNB430WxK | PNB435WxK |
Nominal Power (W) | 25 | 30 | 35 |
Input Voltage | 220 – 240 VAC 50 / 60 Hz | ||
Luminaire Flux (lm) | 2875 | 3450 | 3500 |
Luminaire Efficacy (lm/W) | 100 | 115 | 100 |
CRI | > 80 | ||
Power Factor | > 0.90 | ||
SDCM | ≤ 5 | ||
Colour Temp. (K) | 3000 / 4000 / 5000 / 6000 | ||
Luminaire Rated Life (hrs) | 50,000 | ||
Operating Temp. (°C) | -20 to +40 | ||
Weight (kg) | 2.5 | ||
Model | PNBW225WxK | PNBW230WxK | PNBW235WxK |
|---|---|---|---|
Nominal Power (W) | 25 | 30 | 35 |
Input Voltage | 220 – 240 VAC 50 / 60 Hz | ||
Luminaire Flux (lm) | 3000 | 3000 | 3500 |
Luminaire Efficacy (lm/W) | 120 | 100 | 100 |
CRI | > 80 | ||
Power Factor | > 0.90 | ||
SDCM | ≤ 5 | ||
Colour Temp. (K) | 3000 / 4000 / 5000 / 6000 | ||
Luminaire Rated Life (hrs) | 50,000 | ||
Operating Temp. (°C) | -20 to +40 | ||
Weight (kg) | 2.5 | ||
Model | PNBW440WxK | PNBW450WxK | PNBW460WxK |
|---|---|---|---|
Nominal Power (W) | 40 | 50 | 60 |
Input Voltage | 220 – 240 VAC 50 / 60 Hz | ||
Luminaire Flux (lm) | 4000 | 6000 | 6000 |
Luminaire Efficacy (lm/W) | 100 | 120 | 100 |
CRI | > 80 | ||
Power Factor | > 0.90 | ||
SDCM | ≤ 5 | ||
Colour Temp. (K) | 3000 / 4000 / 5000 / 6000 | ||
Luminaire Rated Life (hrs) | 50,000 | ||
Operating Temp. (°C) | -20 to +40 | ||
Weight (kg) | 3.5 | ||
“x” denotes CCT, 3 = 3000K ; 4 = 4000K ; 5 = 5000K ; 6 = 6000K
Product Datasheet

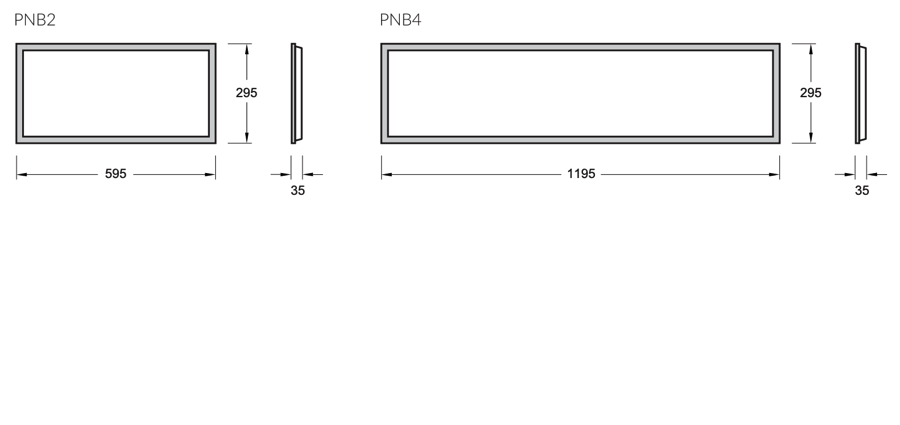

Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| PNB210W3K | 595 x 295 | 10 | 1000 | 100 | 3000 |  |
| PNB210W4K | 595 x 295 | 10 | 1000 | 100 | 4000 | |
| PNB210W5K | 595 x 295 | 10 | 1000 | 100 | 5000 | |
| PNB210W6K | 595 x 295 | 10 | 1000 | 100 | 6000 | |
| PNB215W3K | 595 x 295 | 15 | 1500 | 100 | 3000 | |
| PNB215W4K | 595 x 295 | 15 | 1500 | 100 | 4000 | |
| PNB215W5K | 595 x 295 | 15 | 1500 | 100 | 5000 | |
| PNB215W6K | 595 x 295 | 15 | 1500 | 100 | 6000 | |
| PNB220W3K | 595 x 295 | 20 | 2000 | 100 | 3000 | |
| PNB220W4K | 595 x 295 | 20 | 2000 | 100 | 4000 | |
| PNB220W5K | 595 x 295 | 20 | 2000 | 100 | 5000 | |
| PNB220W6K | 595 x 295 | 20 | 2000 | 100 | 6000 | |
| PNB425W3K | 1195 x 295 | 25 | 2500 | 100 | 3000 | |
| PNB425W4K | 1195 x 295 | 25 | 2500 | 100 | 4000 | |
| PNB425W5K | 1195 x 295 | 25 | 2500 | 100 | 5000 | |
| PNB425W6K | 1195 x 295 | 25 | 2500 | 100 | 6000 | |
| PNB430W3K | 1195 x 295 | 30 | 3000 | 100 | 3000 | |
| PNB430W4K | 1195 x 295 | 30 | 3000 | 100 | 4000 | |
| PNB430W5K | 1195 x 295 | 30 | 3000 | 100 | 5000 | |
| PNB430W6K | 1195 x 295 | 30 | 3000 | 100 | 6000 | |
| PNB435W3K | 1195 x 295 | 35 | 3500 | 100 | 3000 | |
| PNB435W4K | 1195 x 295 | 35 | 3500 | 100 | 4000 | |
| PNB435W5K | 1195 x 295 | 35 | 3500 | 100 | 5000 | |
| PNB435W6K | 1195 x 295 | 35 | 3500 | 100 | 6000 | |
| PNBW225W3K | 595 x 595 | 25 | 2500 | 100 | 3000 | |
| PNBW225W4K | 595 x 595 | 25 | 2500 | 100 | 4000 | |
| PNBW225W5K | 595 x 595 | 25 | 2500 | 100 | 5000 | |
| PNBW225W6K | 595 x 595 | 25 | 2500 | 100 | 6000 | |
| PNBW230W3K | 595 x 595 | 30 | 3000 | 100 | 3000 | |
| PNBW230W4K | 595 x 595 | 30 | 3000 | 100 | 4000 | |
| PNBW230W5K | 595 x 595 | 30 | 3000 | 100 | 5000 | |
| PNBW230W6K | 595 x 595 | 30 | 3000 | 100 | 6000 | |
| PNBW235W3K | 595 x 595 | 35 | 3500 | 100 | 3000 | |
| PNBW235W4K | 595 x 595 | 35 | 3500 | 100 | 4000 | |
| PNBW235W5K | 595 x 595 | 35 | 3500 | 100 | 5000 | |
| PNBW235W6K | 595 x 595 | 35 | 3500 | 100 | 6000 | |
| PNBW440W3K | 1195 x 595 | 40 | 4000 | 100 | 3000 | |
| PNBW440W4K | 1195 x 595 | 40 | 4000 | 100 | 4000 | |
| PNBW440W5K | 1195 x 595 | 40 | 4000 | 100 | 5000 | |
| PNBW440W6K | 1195 x 595 | 40 | 4000 | 100 | 6000 | |
| PNBW450W3K | 1195 x 595 | 50 | 5000 | 100 | 3000 | |
| PNBW450W4K | 1195 x 595 | 50 | 5000 | 100 | 4000 | |
| PNBW450W5K | 1195 x 595 | 50 | 5000 | 100 | 5000 | |
| PNBW450W6K | 1195 x 595 | 50 | 5000 | 100 | 6000 | |
| PNBW460W3K | 1195 x 595 | 60 | 6000 | 100 | 3000 | |
| PNBW460W4K | 1195 x 595 | 60 | 6000 | 100 | 4000 | |
| PNBW460W5K | 1195 x 595 | 60 | 6000 | 100 | 5000 | |
| PNBW460W6K | 1195 x 595 | 60 | 6000 | 100 | 6000 | |
