ORKI OK5 - Davis Lighting

ORKIOK5
An eco‑friendly LED solution designed for exceptional energy savings and visual harmony, featuring a modular architecture for effortless maintenance and future readiness, proprietary lens technology delivering superior light output, and advanced thermal management that ensures lasting performance and brilliance
Family Datasheet
Product Information

Item 1 of 1

OK5

Features

Eco-friendly LED product for energy saving and visual consistency
Modular design for easy maintenance with future proofing
Propriety lens design for high LOR
Reliable thermal management for long life and lumen maintenance

IP54

Dim Optional

Indoor

Suitable Applications

Commercial
Hospitality
Recreation
Retail
Commercial
Hospitality
Recreation
Retail
Commercial
Hospitality
Recreation
Retail

Item 1 of 4

Specifications

OK5R	OK5R634	OK5R641	OK5R746	OK5R753	OK5R760
Nominal Power (W)	34	41	46	53	60
Dimensions (LxWxH)	140x155		166x175
Input Voltage (Vac)	220-240
Frequency (Hz)	50/60
Luminous Flux (lm)	4880/5025/5075	5485/5645/5700	6030/6210/6270	7120/7335/7405	7930/8165/8245
Beam Angle (°)	15/24/36/60
CCT (K)	3000/4000/5700
CRI	>80
SDCM	≤3
Power Factor	>0.9
Product Lifetime (L70B50)	>50,000hrs
IP Rating	54
Cut-out (mm)	125		150

OK5S	OK5S634	OK5S641	OK5S746	OK5S753	OK5S760
Nominal Power (W)	34	41	46	53	60
Dimensions (LxWxH)	144x144x171		169x169x191
Input Voltage (Vac)	220-240
Frequency (Hz)	50/60
Luminous Flux (lm)	4880/5025/5075	5485/5645/5700	6030/6210/6270	7120/7335/7405	7930/8165/8245
Beam Angle (°)	15/24/36/60
CCT (K)	3000/4000/5700
CRI	>80
SDCM	≤3
Power Factor	>0.9
Product Lifetime (L70B50)	>50,000hrs
IP Rating	54
Cut-out (mm)	125x125		150x150

OK5RTL	OK5RTL634	OK5RTL641	OK5RTL746	OK5RTL753	OK5RTL760
Nominal Power (W)	34	41	46	53	60
Dimensions (LxWxH)	148x155		176x175
Input Voltage (Vac)	220-240
Frequency (Hz)	50/60
Luminous Flux (lm)	4880/5025/5075	5485/5645/5700	6030/6210/6270	7120/7335/7405	7930/8165/8245
Beam Angle (°)	15/24/36/60
CCT (K)	3000/4000/5700
CRI	>80
SDCM	≤3
Power Factor	>0.9
Product Lifetime (L70B50)	>50,000hrs
IP Rating	54
Cut-out (mm)	125		150

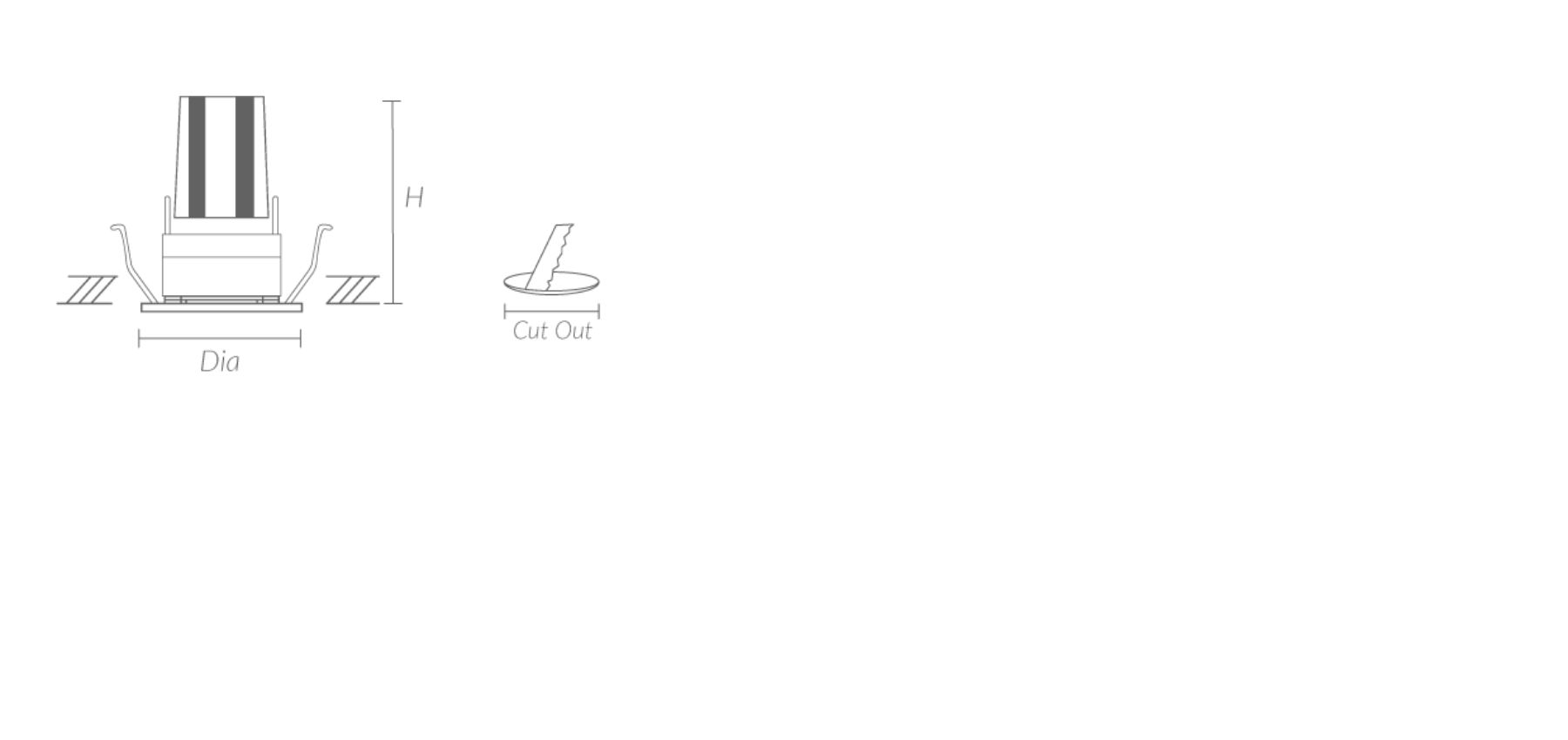

Dimensions

ORKI5 Dim

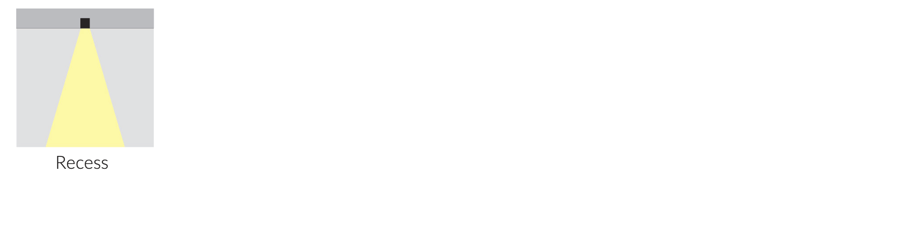

Mounting Methods

ORKI5 Mount

Product Datasheet

ORKI OK5

(showing 15 product SKUs)

Model Number	Size	Nominal Power	Luminous Flux (lm)	CCT	IES
OK5R634	140x155	34	4880/5025/5075	3000/4000/5700
OK5R641	140x155	41	5485/5645/5700	3000/4000/5700
OK5R746	166x175	46	6030/6210/6270	3000/4000/5700
OK5R753	166x175	53	7120/7335/7405	3000/4000/5700
OK5R760	166x175	60	7930/8165/8245	3000/4000/5700
OK5S634	144x144x171	34	4880/5025/5075	3000/4000/5700
OK5S641	144x144x171	41	5485/5645/5700	3000/4000/5700
OK5S746	169x169x191	46	6030/6210/6270	3000/4000/5700
OK5S753	169x169x191	53	7120/7335/7405	3000/4000/5700
OK5S760	169x169x191	60	7930/8165/8245	3000/4000/5700
OK5RTL634	148x155	34	4880/5025/5075	3000/4000/5700
OK5RTL641	148x155	41	5485/5645/5700	3000/4000/5700
OK5RTL746	176x175	46	6030/6210/6270	3000/4000/5700
OK5RTL753	176x175	53	7120/7335/7405	3000/4000/5700
OK5RTL760	176x175	60	7930/8165/8245	3000/4000/5700
