GSC

Features

  • High lighting efficacy SMD LED chips up to 150lm/w

  • High ambient temperature rating & good heat dissipation

  • Instant start up (no flickering or humming)

  • Plaster recessed mounting, ºvarious size to suit ceiling

  • Modular type and hanging bracket easy for installation & maintainance

  • Sensor optional

IK08
IP65
Indoor
Outdoor

Suitable Applications

Specifications
Expand
GSCGSC100S GSC150S GSC200S GSC250S
Nominal Power (W)100 150 200 250
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)12200183002440030500
CRI>80, 90 (optional)
Power Factor≥0.95
CCT (K)4000/6000/6500
Beam Angle (°)60/90
Operating Temp. (°C)-10 to +45
IP65
IK08
Dimension LxWxH (mm)370x370x116
Cut Out LxW (mm)340x340
Rated Life Span>50000
HousingEG Steel
FinishingEpoxy powder coating
OpticsPC lens
ProtectionClass 1
Driver optionsON/OFF, 0-10v, DALI
GSCGSC100L GSC150L GSC200L GSC250L
Nominal Power (W)100 150 200 250
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)12200183002440030500
CRI>80, 90 (optional)
Power Factor≥0.95
CCT (K)4000/6000/6500
Beam Angle (°)60/90
Operating Temp. (°C)-10 to +45
IP65
IK08
Dimension LxWxH (mm)370x370x116
Cut Out LxW (mm)420x420
Rated Life Span>50000
HousingEG Steel
FinishingEpoxy powder coating
OpticsPC lens
ProtectionClass 1
Driver optionsON/OFF, 0-10v, DALI

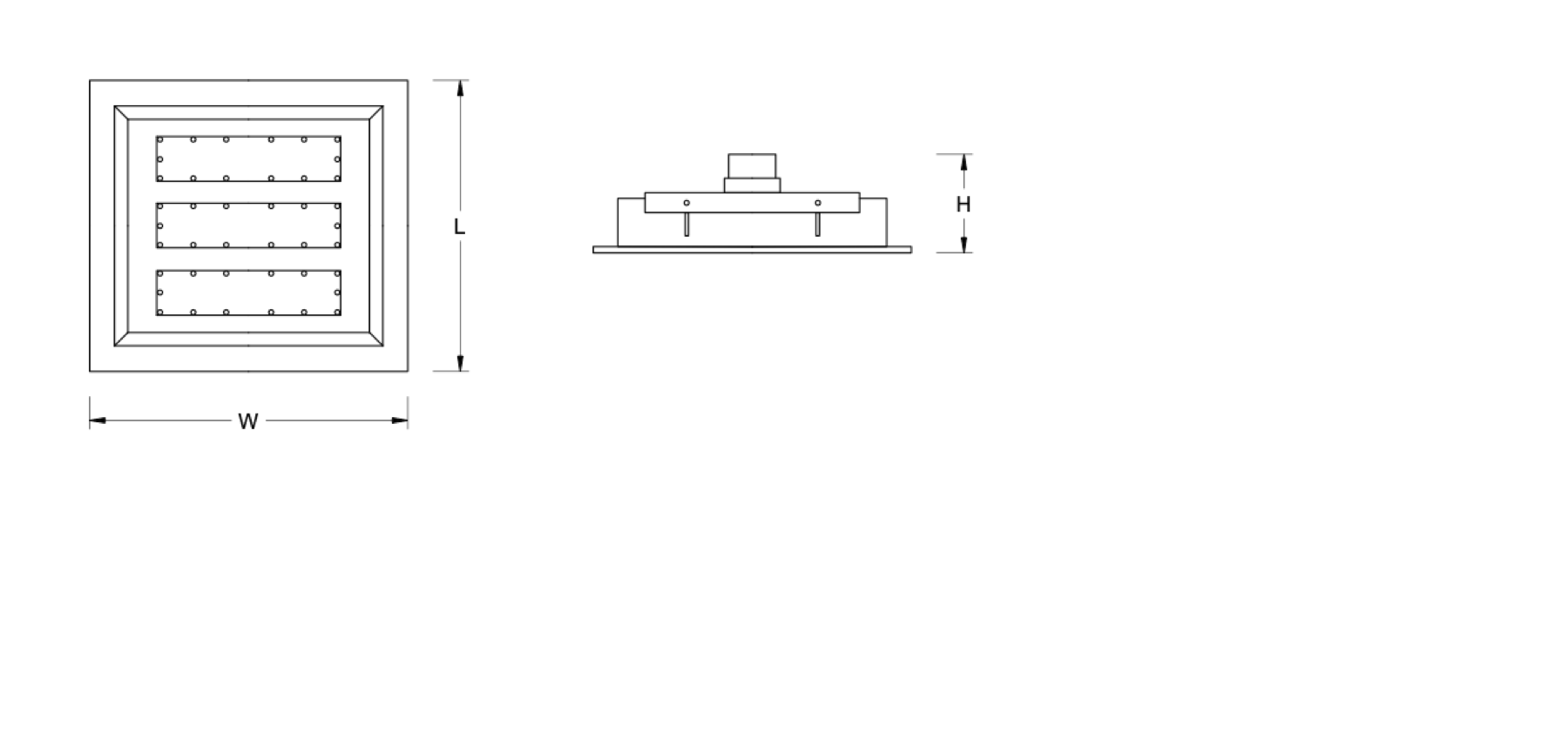

Dimensions
Expand
GSC Dim

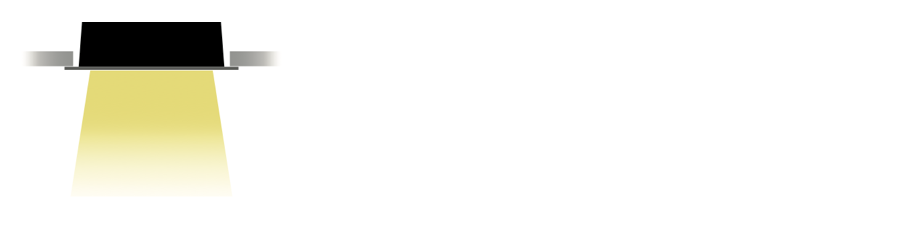

Mounting Methods
Expand
GSC Mount

Product Datasheet

GLINOS GSC
(showing 8 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
Efficacy (lm/W)
Sort
CCT
Sort
IES
GSC100S 370x370x116 100 122004000/6000/6500
GSC150S 370x370x116 150 183004000/6000/6500
GSC200S 370x370x116 200 244004000/6000/6500
GSC250S 370x370x116 250 305004000/6000/6500
GSC100L 370x370x116 100 122004000/6000/6500
GSC150L 370x370x116 150 183004000/6000/6500
GSC200L 370x370x116 200 244004000/6000/6500
GSC250L 370x370x116 250 305004000/6000/6500
