ERIS ECOESEris Eco square shape downlight utilizes an LED light source to achieve exceptional brightness and energy efficiency. The spring clip allows for effortless installation.
Item 1 of 1
Features
Square shape design
Uniform light effect and distribution
Ultra-thin LED recessed downlight & suitable for low ceiling
Wide range of sizes available
Quick and simple installation, use spring clip to fix on ceiling
Reliable thermal management for long life and lumen maintenance
Suitable Applications
Item 1 of 3
Specifications
| Eris Eco ES | ES410 | ES412 | ES615 | ES620 | ES820 | ES825 |
|---|---|---|---|---|---|---|
| Nominal Power (W) | 10 | 12 | 15 | 20 | 25 | |
| LED Lumen (lm) | 900 | 1080 | 1350 | 1800 | 2550 | |
| Colour Temp. (K) | 3000/4000/6000 | |||||
| Beam Angle (°) | 100 | |||||
| Dimension L x W x H | 120 x 120 x 29 | 170 x 170 x 29 | 225 x 225 x 29 | |||
| Cut-out L x W | 100 x 100 | 150 x 150 | 205 x 205 | |||
| Input Voltage (Vac) | 220-240 | |||||
| Frequency (Hz) | 50/60 | |||||
| Efficacy (lm/W) | 90 | 102 | ||||
| Type. CRI (Ra) | >80, >90 (optional) | |||||
| Power Factor | >0.9 | |||||
| SDCM | ≤5 step MacAdam | |||||
| Rated Life Span | >50,000hrs | |||||
| IP Rating | IP20 | |||||
| Housing | Die-cast aluminium casing and frame | |||||
| Finishing | Epoxy powder Coating | |||||
| Optics | PC Lens | |||||

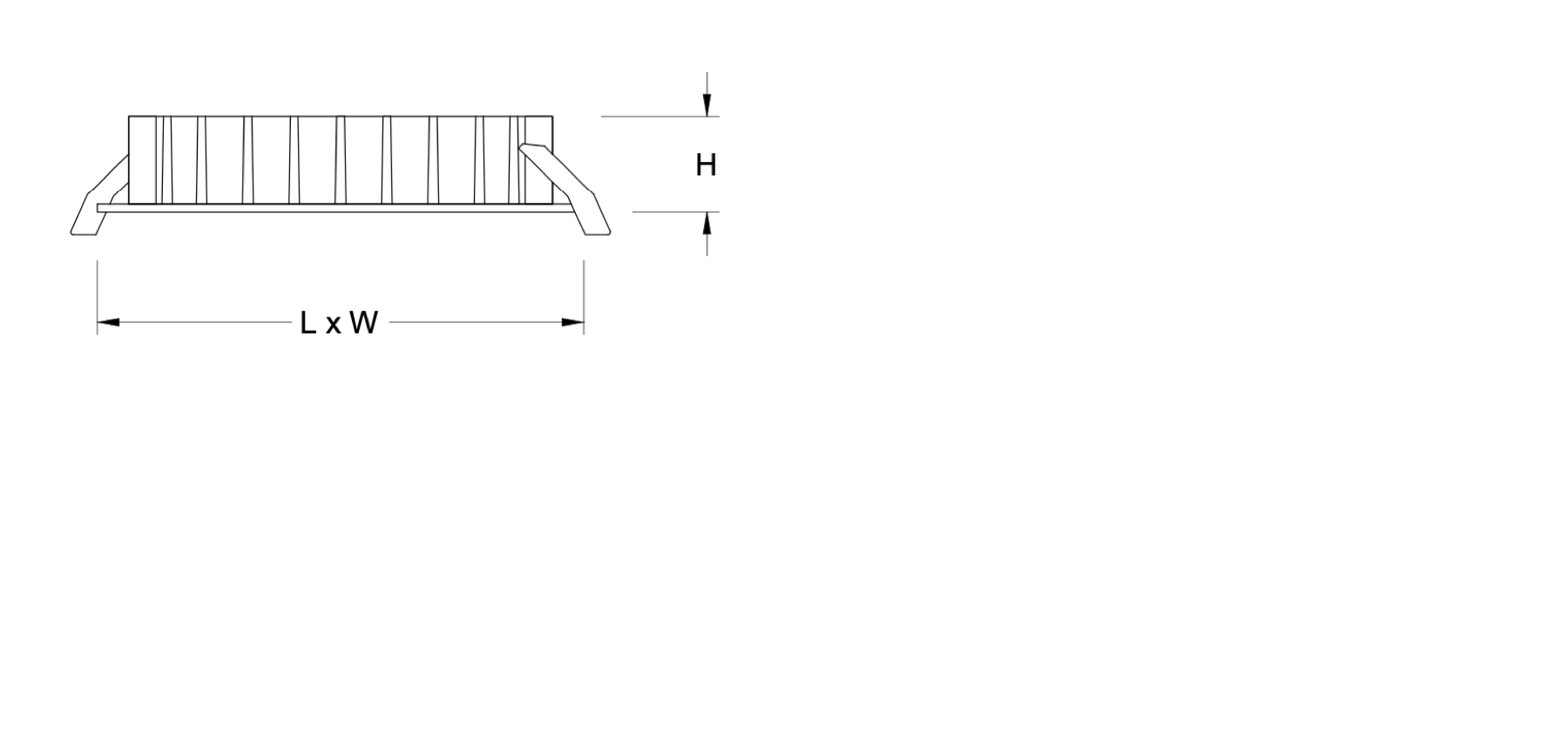

Dimensions

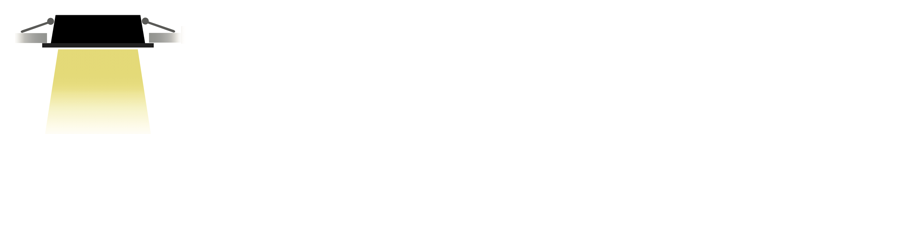

Mounting Methods
Product Datasheet
ERIS ECO ES
(showing 6 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| ES410 | 120 x 120 x 29 | 10 | 900 | 90 | 3000/4000/6000 | |
| ES412 | 120 x 120 x 29 | 12 | 1080 | 90 | 3000/4000/6000 | |
| ES615 | 170 x 170 x 29 | 15 | 1350 | 90 | 3000/4000/6000 | |
| ES620 | 170 x 170 x 29 | 20 | 1800 | 90 | 3000/4000/6000 | |
| ES820 | 225 x 225 x 29 | 20 | 1800 | 90 | 3000/4000/6000 | |
| ES825 | 225 x 225 x 29 | 25 | 2550 | 102 | 3000/4000/6000 |
