Item 1 of 1
ER

Features

  • Round shape design

  • Uniform light effect and distribution

  • Ultra-thin LED recessed downlight & suitable for low ceiling

  • Wide range of sizes available

  • Quick and simple installation, use spring clip to fix on ceiling

  • Reliable thermal management for long life and lumen maintenance

Indoor
IP20
Dim Optional

Suitable Applications

Specifications
Expand
Eris Eco ERER410WER412WER612WER615WER618W
Nominal Power (W)10121518
LED Lumen (lm)1000120015001800
Colour Temp. (K)3000/4000/6000
Beam Angle (°)100
Dimension D x H120 x 29180 x 29
Cut-out100160
Input Voltage (Vac)220-240
Frequency (HZ)50/60
Efficacy (lm/W)100
Type. CRI (Ra)>80, >90 (optional)
Power Factor>0.9
SDCM≤5 step MacAdam
Rated Life Span>50,000hrs
IP RatingIP20
HousingDie-cast aluminium casing and frame
FinishingEpoxy powder Coating
OpticsPC Lens
Eris Eco ERER620WER820WER825WER830W
Nominal Power (W)202530
LED Lumen (lm)200025003000
Colour Temp. (K)3000/4000/6000
Beam Angle (°)100
Dimension D x H180 x 29225 x 29
Cut-out160200
Input Voltage (Vac)220-240
Frequency (HZ)50/60
Efficacy (lm/W)100
Type. CRI (Ra)>80, >90 (optional)
Power Factor>0.9
SDCM≤5 step MacAdam
Rated Life Span>50,000hrs
IP RatingIP20
HousingDie-cast aluminium casing and frame
FinishingEpoxy powder Coating
OpticsPC Lens

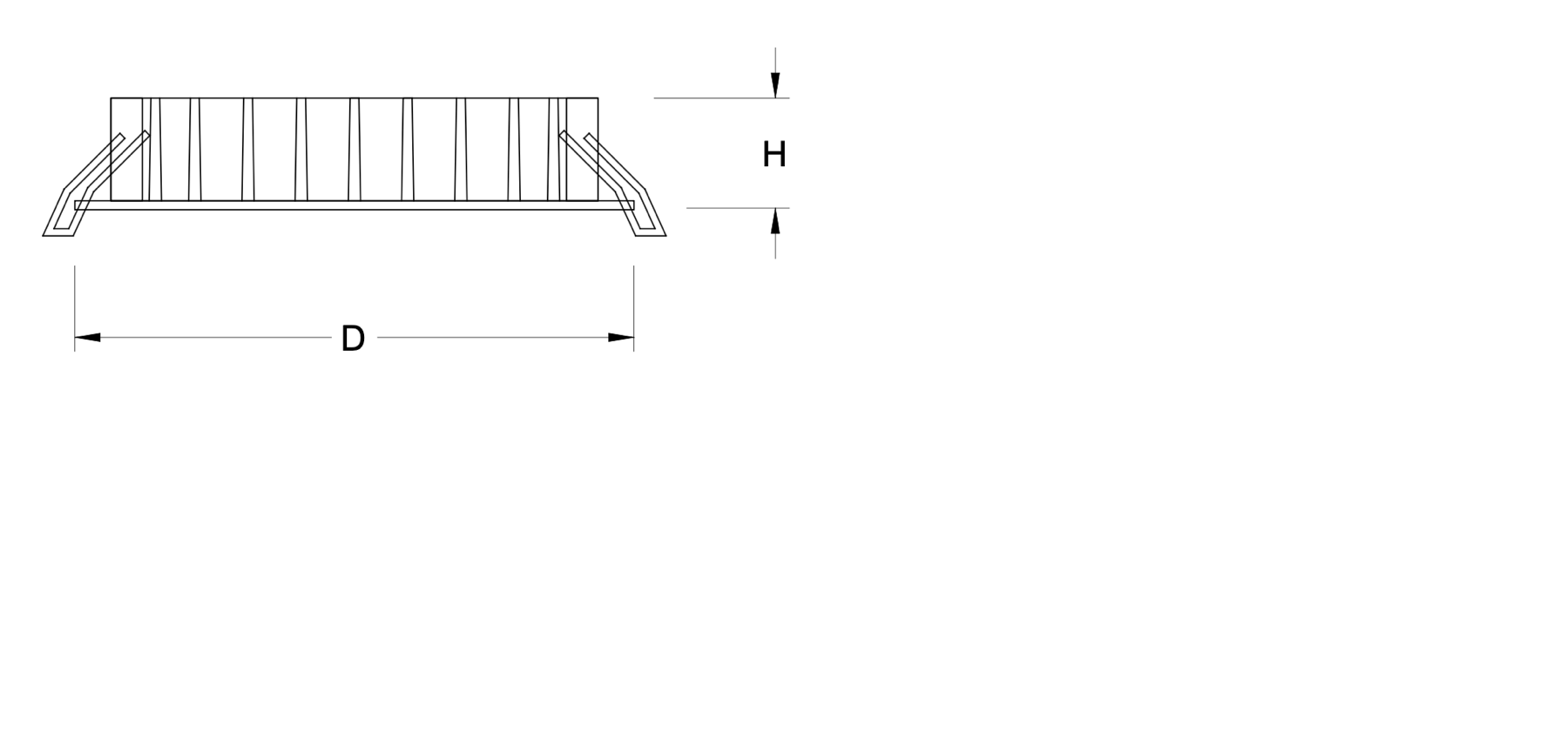

Dimensions
Expand
ER

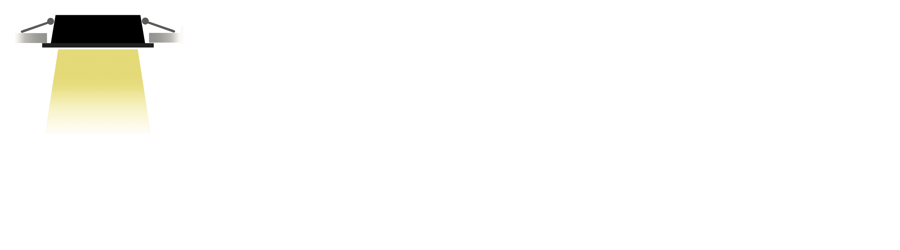

Mounting Methods
Expand
ER

Product Datasheet

ERIS ECO ER
(showing 9 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
Efficacy (lm/W)
Sort
CCT
Sort
IES
ER410W120 x 291010001003000/4000/6000
ER412W120 x 291212001003000/4000/6000
ER612W180 x 291212001003000/4000/6000
ER615W180 x 291515001003000/4000/6000
ER618W180 x 291818001003000/4000/6000
ER620W180 x 292020001003000/4000/6000
ER820W225 x 292020001003000/4000/6000
ER825W225 x 292525001003000/4000/6000
ER830W225 x 293030001003000/4000/6000
