DMS

Features

  • Surface mount square downlight
  • Slim casing suitable for low ceiling areas
  • High performance LED system
  • Available in a range of wattages, colour temperatures and sizes
  • Quick and easy installation

  • Uniform light effect and distribution

  • Reliable thermal management for long life and lumen maintenance

Dim Optional
Indoor
IP20

Suitable Applications

Specifications
Expand
Demea DMSDMS410DMS615DMS620DMS820DMS830
Nominal Power (W)1015202430
Dimension (L x W x H)120 x 120 x 35175 x 175 x 35225 x 225 x 35
Input Voltage (Vac)220-240
Frequency (Hz)50/60
LED Lumen (lm)9001350180021602700
Efficacy (lm/W)90
Type. CRI (Ra)>80, >90 (optional)
SDCM≤3 step MacAdam
Colour Temp. (K)3000/4000/6000
Beam Angle (°)90
Power Factor>0.9
Rated Life Span>50,000hrs
IP RatingIP20
HousingDie-cast aluminium casing
FinishingWhite epoxy powder coating
OpticsPC lens with various colour options
Casing ColourWhite / Black

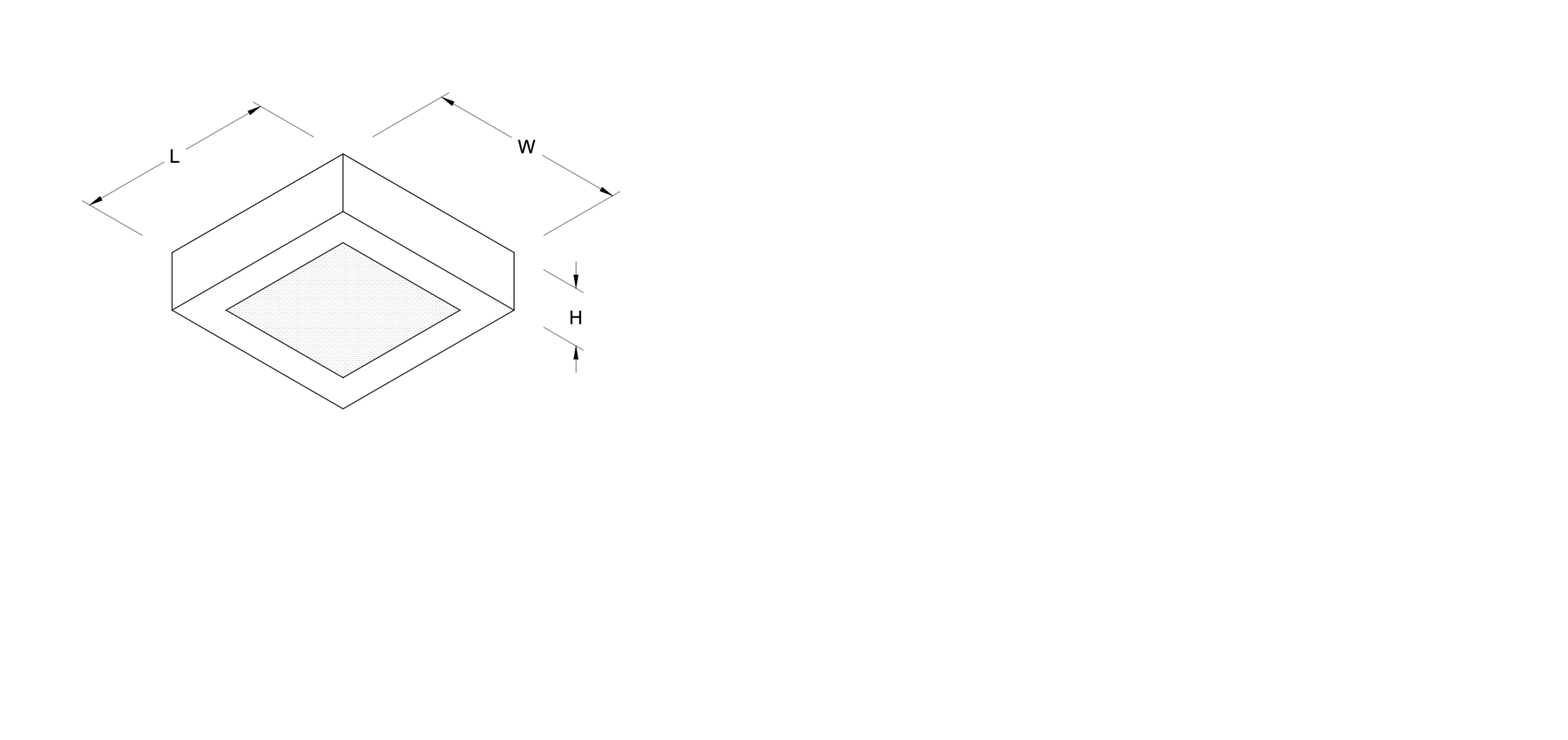

Dimensions
Expand
Dimension 1800x850

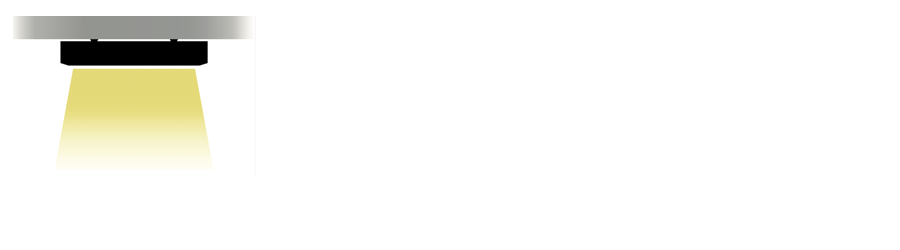

Mounting Methods
Expand
Mounting 900x250

Product Datasheet

DEMEA DMS
(showing 5 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
Efficacy (lm/W)
Sort
CCT
Sort
IES
DMS410120 x 120 x 3510900903000/4000/6000
DMS615175 x 175 x 35151350903000/4000/6000
DMS620175 x 175 x 35201800903000/4000/6000
DMS820225 x 225 x 35242160903000/4000/6000
DMS830225 x 225 x 35302700903000/4000/6000
