DALTON DLR - Davis Lighting

DALTONDLR
Choice of power outputs and colour temperatures, dimming and a long-life 50,000hr system all packed into one attractive, low-profile package. Set the mood and create a personalised atmosphere in a range of environments from residential to retail.
Family Datasheet
Product Information

Item 1 of 1

DLR

Features

Uniform light effect and distribution
Low glare (UGR<19)
IP44 ingress protection
Reliable thermal management for long life and lumen maintenance
Low profile recessed down light
Wide range of sizes and powers

Indoor

IP44

Dim Optional

Suitable Applications

Education
Hospitality
Office
Residential
Retail
Education
Hospitality
Office
Residential
Retail
Education
Hospitality
Office
Residential
Retail

Item 1 of 5

Specifications

Dalton DLR	DLR510	DLR512	DLR515	DLR620	DLR820	DLR825	DLR830	DLR835
Nominal Power (W)	10	12	15	20		25	30	35
LED Lumen (lm)	1000	1200	1500	2000		2500	3000	3500
Colour Temp. (K)	3000/4000/6000
Beam Angle (°)	100
Dimension D x H	175 x 50	175 x 53		180 x 55	240 x 56
Cut-out	155			160	210
Input Voltage (Vac)	220-240
Frequency (Hz)	50/60
Efficacy (lm/W)	100
Type. CRI (Ra)	>80, >90 (optional)
Power Factor	>0.9
SDCM	≤3 step MacAdam
Rated Life Span	>50,000hrs
IP Rating	IP44
Housing	Die-cast aluminium casing and frame
Finishing	Epoxy powder Coating
Optics	Micro-Prismatic diffuser + PC reflector

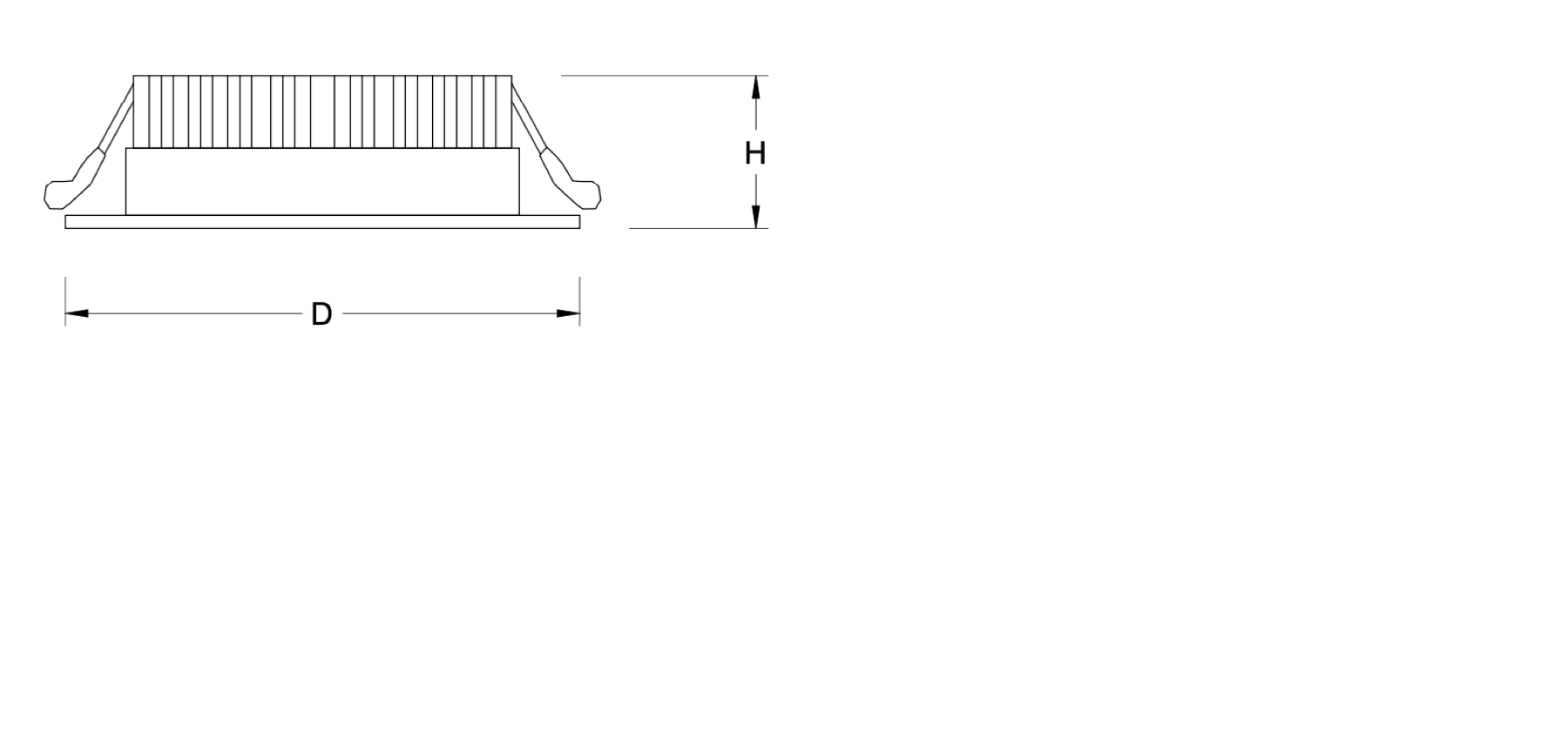

Dimensions

DLR

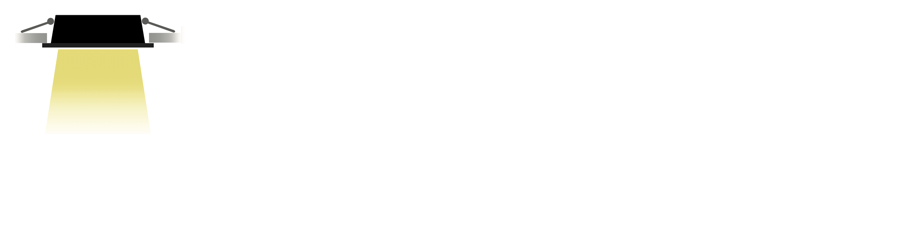

Mounting Methods

Product Datasheet

DALTON DLR

(showing 8 product SKUs)

Model Number	Size	Nominal Power	Luminous Flux (lm)	Efficacy (lm/W)	CCT	IES
DLR510	175 x 50	10	1000	100	3000/4000/6000
DLR512	175 x 53	12	1200	100	3000/4000/6000
DLR515	175 x 53	15	1500	100	3000/4000/6000
DLR620	180 x 55	20	2000	100	3000/4000/6000
DLR820	240 x 56	20	2000	100	3000/4000/6000
DLR825	240 x 56	25	2500	100	3000/4000/6000
DLR830	240 x 56	30	3000	100	3000/4000/6000
DLR835	240 x 56	35	3500	100	3000/4000/6000
