CALYPSOCYSWith a sleek and refined square shape, this high-performance bulkhead effortlessly enhances various outdoor environments. Designed for durability and aesthetic appeal, it seamlessly integrates into diverse settings, providing reliable illumination while maintaining a modern, sophisticated presence in any space.
Item 1 of 1
Features
- Square shape design with various trim choices
- Vandal resistant suitable for outdoor use
- Reliable thermal management for long life and lumen maintenance.
- Robust die-casted aluminium body with PC diffser
- Corrosion resistant
Suitable Applications
Item 1 of 4
Specifications
| Calypso CYS | CYS20 | CYS20W | CYS20H |
|---|---|---|---|
| Nominal Power (W) | 20 | ||
| Dimension (L x W x H) | 270 x 270 x 85 | ||
| Input Voltage (Vac) | 220-240 | ||
| Frequency (Hz) | 50/60 | ||
| LED Lumen (lm) | 1800 | ||
| Efficacy (lm/W) | 100 | ||
| Type. CRI (Ra) | >80 | ||
| SDCM | ≤6 step MacAdam | ||
| Colour Temp. (K) | 3000 / 4000 | ||
| Beam Angle (°) | 120 | ||
| Power Factor | >0.9 | ||
| Rated Life Span | >50,000hrs | ||
| IP Rating | IP65 | ||
| Housing | Die-cast aluminium casing | ||
| Finishing | Epoxy powder coating | ||
| Optics | PC diffuser | ||
| Casing Colour | Black / Grey | ||
Note: The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or similar qualified person.

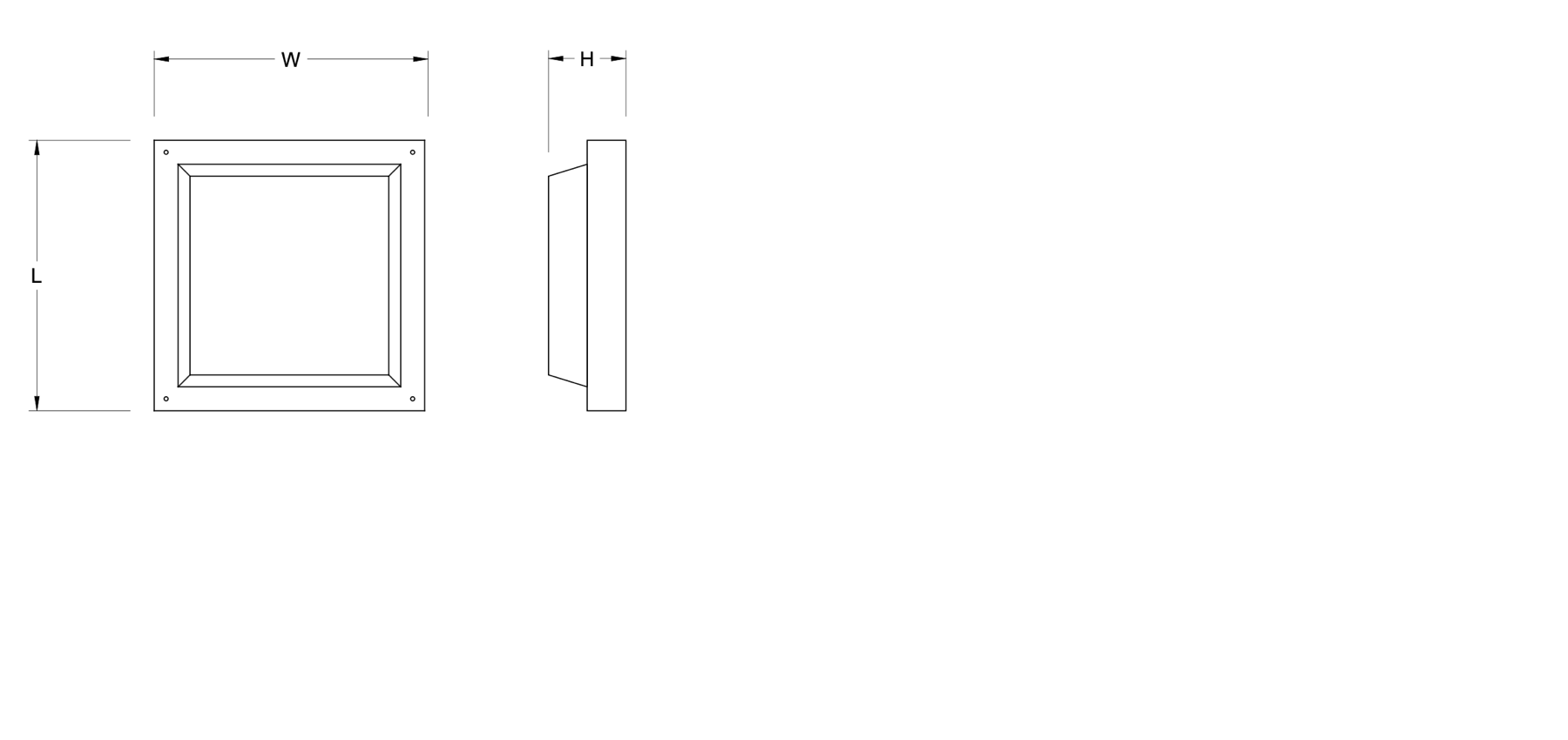

Dimensions

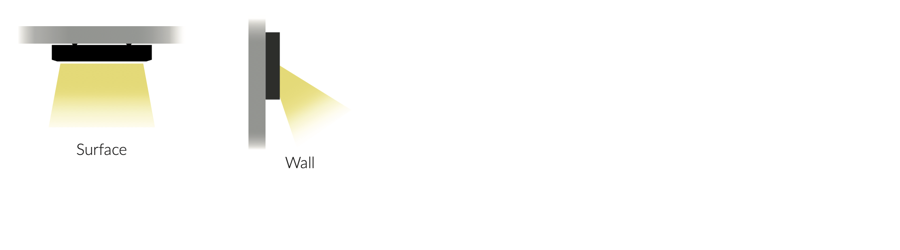

Mounting Methods
Product Datasheet
CALYPSO CYS
(showing 3 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| CYS20 | 270 x 270 x 85 | 20 | 1800 | 100 | 3000 / 4000 | |
| CYS20W | 270 x 270 x 85 | 20 | 1800 | 100 | 3000 / 4000 | |
| CYS20H | 270 x 270 x 85 | 20 | 1800 | 100 | 3000 / 4000 |
