BOWENBWDElevate your lighting experience with our robust die-cast aluminum surface downlight. Featuring a Microprismatic diffuser and PC reflector, it ensures glare-free, uniform illumination. Designed with a high-performance LED system, it delivers exceptional brightness and energy efficiency, making it the perfect blend of durability, sophistication, and cutting-edge lighting technology.
Item 1 of 1
Features
- Surface mount circular downlight
- Robust die-cast aluminium casing
- High performance LED system
- Available in a range of wattages, colour temperatures and sizes
- CRI ≥ 80
- Quick and easy installation
Uniform light effect and distribution
Reliable thermal management for long life and lumen maintenance
Suitable Applications
Item 1 of 7
Specifications
| BWD | BWD510A | BWD615A | BWD820A | BWD415B |
|---|---|---|---|---|
| Nominal Power (W) | 10 | 15 | 20 | 15 |
| Dimension DxH (mm) | Ø153x90 | Ø170x100 | Ø215x120 | Ø120x70 |
| Input Voltage (Vac) | 220-240 | |||
| Frequency (Hz) | 50/60 | |||
| LED Lumen (lm) | 900 | 1350 | 1800 | 1275 |
| Colour Temp. (K) | 3000/4000/6000 | |||
| Type. CRI (Ra) | >80, >90 (optional) | |||
| SDCM | ≤3 step MacAdam | |||
| Beam Angle (°) | 90 | |||
| Casing Colour | White / Black | |||
| Power Factor | ≥0.9 | |||
| THD (%) | <20 | |||
| IP Rating | 20 | |||
| Rated Life Span | >50,000hrs | |||
| Housing | Die-cast aluminium casing and frame | |||
| Finishing | Epoxy powder coating | |||
| Optics | Microprismatic diffuser and PC reflector | |||
| Driver options | ON/OFF, Trailing-edge, 1-10v, DA | |||
| BWD | BWD620B | BWD825B | BWD830B |
|---|---|---|---|
| Nominal Power (W) | 20 | 25 | 30 |
| Dimension DxH (mm) | Ø170x90 | Ø200x100 | |
| Input Voltage (Vac) | 220-240 | ||
| Frequency (Hz) | 50/60 | ||
| LED Lumen (lm) | 1700 | 2125 | 2550 |
| Colour Temp. (K) | 3000/4000/6000 | ||
| Type. CRI (Ra) | >80, >90 (optional) | ||
| SDCM | ≤3 step MacAdam | ||
| Beam Angle (°) | 90 | ||
| Casing Colour | White / Black | ||
| Power Factor | ≥0.9 | ||
| THD (%) | <20 | ||
| IP Rating | 20 | ||
| Rated Life Span | >50,000hrs | ||
| Housing | Die-cast aluminium casing and frame | ||
| Finishing | Epoxy powder coating | ||
| Optics | Microprismatic diffuser and PC reflector | ||
| Driver options | ON/OFF, Trailing-edge, 1-10v, DA | ||

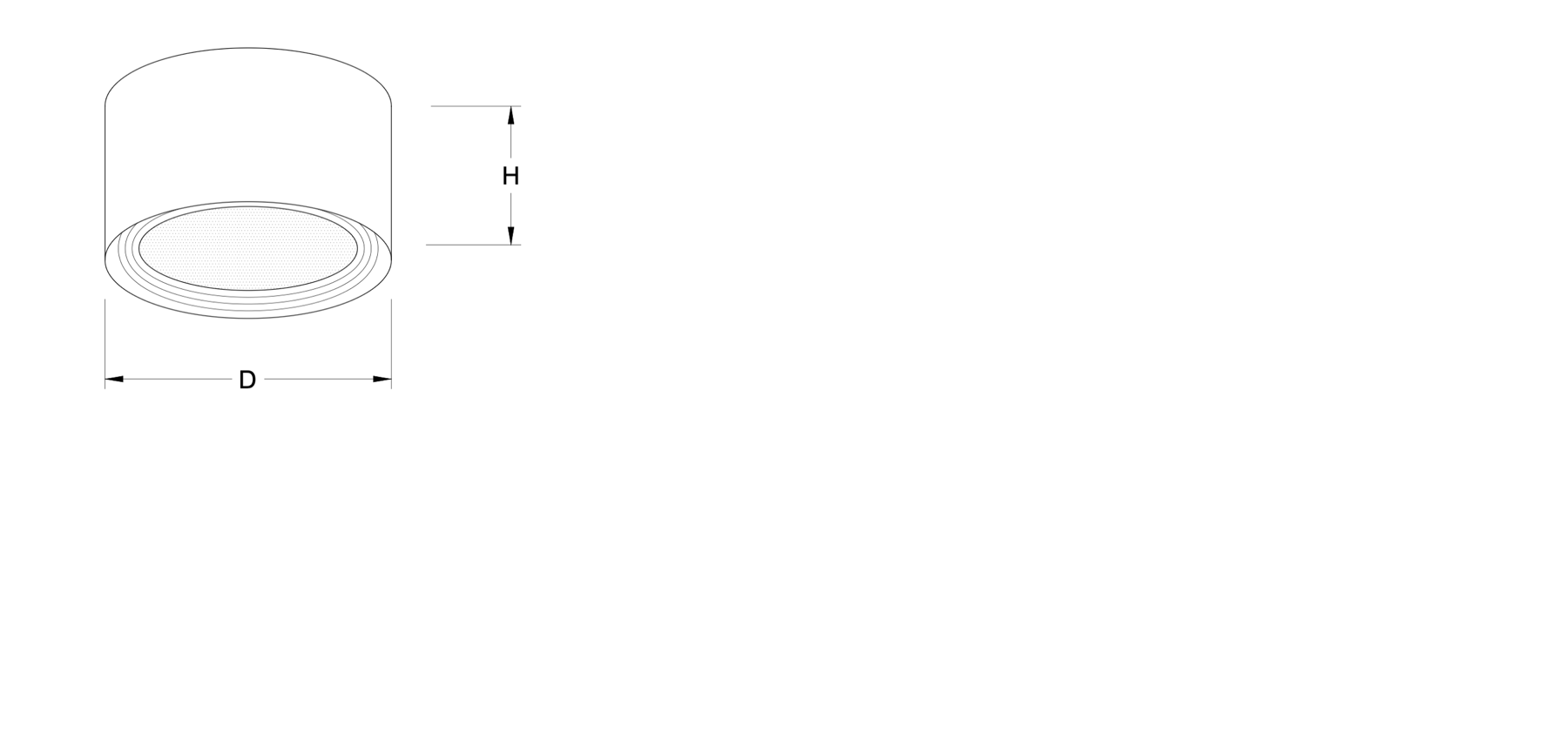

Dimensions

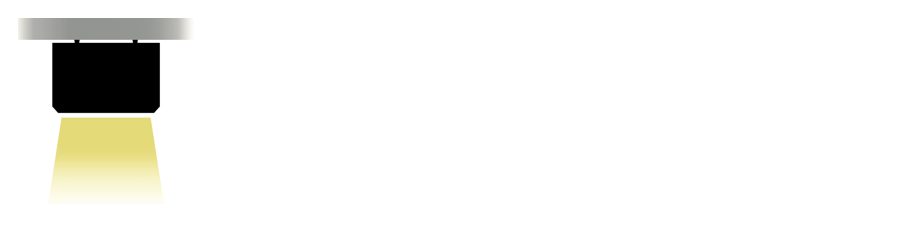

Mounting Methods
Product Datasheet
BOWEN BWD
(showing 7 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| BWD510A | Ø153x90 | 10 | 900 | 3000/4000/6000 | ||
| BWD615A | Ø170x100 | 15 | 1350 | 3000/4000/6000 | ||
| BWD820A | Ø215x120 | 20 | 1800 | 3000/4000/6000 | ||
| BWD415B | Ø120x70 | 15 | 1275 | 3000/4000/6000 | ||
| BWD620B | Ø170x90 | 20 | 1700 | 3000/4000/6000 | ||
| BWD825B | Ø200x100 | 25 | 2125 | 3000/4000/6000 | ||
| BWD830B | Ø200x100 | 30 | 2550 | 3000/4000/6000 |
