BEATRIXBTMRAvailable in two different lengths, 600mm and 1200mm, provides versatility to suit various lighting needs and space requirements. The lightweight design ensures it can easily fit into a wide range of spaces without being obtrusive. It offers versatile mounting options for flexible placement and usage, on ceilings, walls, or suspended.
Item 1 of 1
Features
Slim, solid and light weight body
Metal end caps for absolute batten rigidity
Quick installation and easy to fit any space
Fixing holes for easy mounting (ceiling/wall & suspended)
Suitable Applications
Item 1 of 6
Specifications
| BTMR | BTMR21T8A | BTMR22T8A | BTMR41T8A | BTMR42T8A |
|---|---|---|---|---|
| Size | 600 | 1200 | ||
| No. of Tube | Single tube | Double tube | Single tube | Double tube |
| Width (mm) | 120 | 220 | 120 | 220 |
| Height (mm) | 70 | 80 | 70 | 80 |
| Length (mm) | 611 | 622 | 1221 | |
| Casing thickness (mm) | <0.4 | |||
| Mounting | surface/ceiling/suspended | |||
| Luminous Flux (lm) | depends on tube | |||
| Efficacy (lm/W) | depends on tube | |||
| CCT | depends on tube | |||

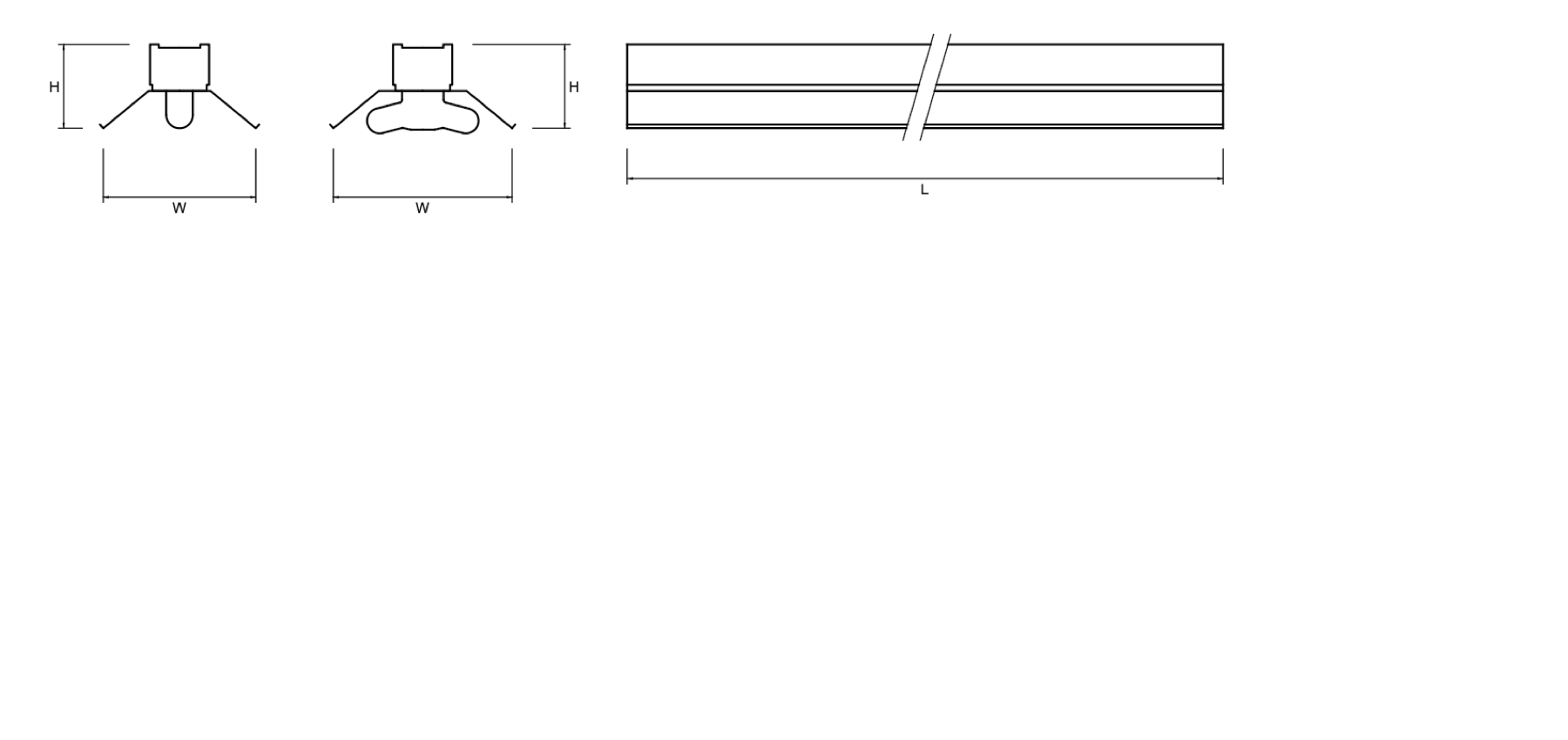

Dimensions

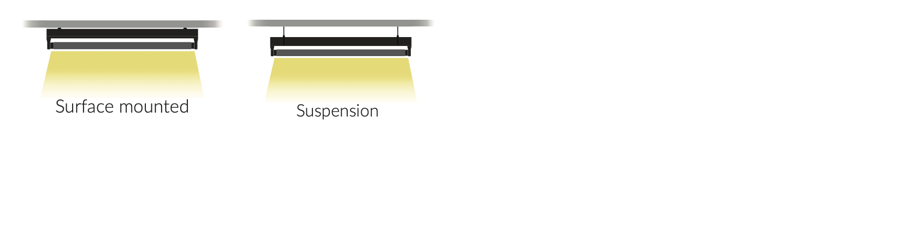

Mounting Methods

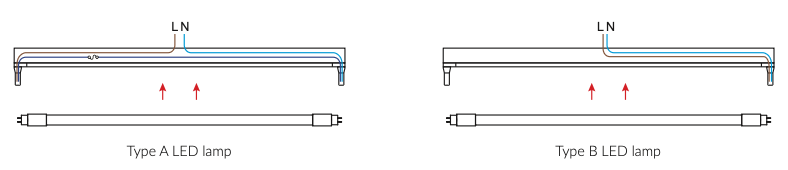

T8 Tube Installation
Product Datasheet
BEATRIX BTMR
(showing 4 product SKUs)
Size
Nominal Power
Model Number  | Size | Nominal Power | Luminous Flux (lm) | IES |
|---|---|---|---|---|
| BTMR21T8A | 600 | Single tube | depends on tube | |
| BTMR22T8A | 600 | Double tube | depends on tube | |
| BTMR41T8A | 1200 | Single tube | depends on tube | |
| BTMR42T8A | 1200 | Double tube | depends on tube |
