BATHURSTBUSSpecifically engineered for outdoor use, Bathurst BUC/BUD features a sturdy die-cast aluminum body that boasts exceptional durability, earning them an impressive IK09 impact resistance rating. Their exterior is coated with a UV and corrosion-resistant powder finish, ensuring they maintain their structural integrity when faced with the harshest outdoor conditions.
Features
- Round and rectangle design
- Suitable for modern or minimalist design
- Suitable for outdoor applications
- Robust aluminum die-cast body with IK08 impact resistance
- UV / corrosion-resistant powder-coated finish
- Superior uniform illumination designed to enhance urban spaces with beautiful visual appearance
- IP65 rated dust and water ingress protection
Suitable Applications
Model | BUSS10-xy | BUSD20-xy |
|---|---|---|
Shape | Square | |
Beam | Single | Double |
Nominal Power (W) | 10 | 20 |
Input Voltage (V) | 220-240 | |
CRI (Ra) | >80 | |
CCT (K) | 3000/4000/5000 | |
Frequency (Hz) | 50/60 | |
Luminaire Flux (lm) | 1000 | 2000 |
Luminaire Efficacy (lm/W) | 100 | |
Luminaire Rated Life (hr) | >50,000 @ L70 | |
Beam Angle (°) | 15/24/36 | |
Operating Temp. (°C) | -20 to +50 | |
Power Factor | >0.90 | |
SDCM | 3 | |
IK Rating | IK09 | |
IP Rating | IP65 | |
Body Colour | Black | |
Weight (kg) | 1.9 | |
“x” denotes CRI & CCT, R83 = CRI>80, 3000K ; R84 = CRI>80, 4000K ; R85 = CRI>80, 5000K
“y” denotes Beam Angle, B15 = 15° ; B24 = 24° ; B36 = 36°
*Specifications shown for 4000K
Product Datasheet

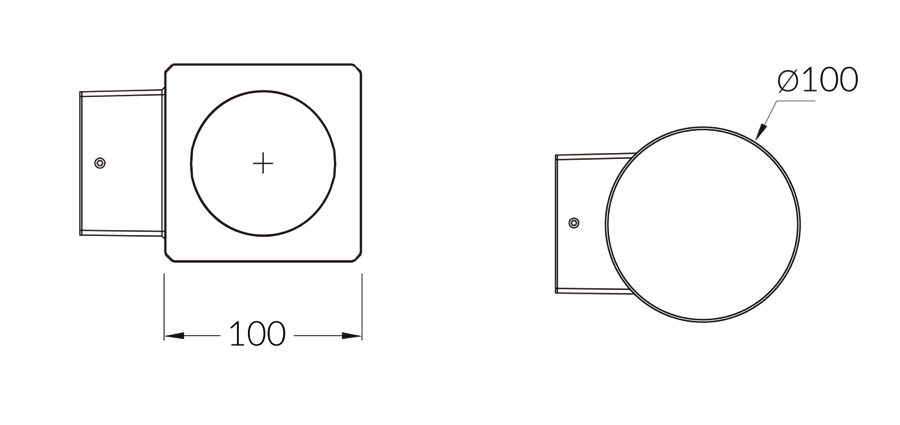

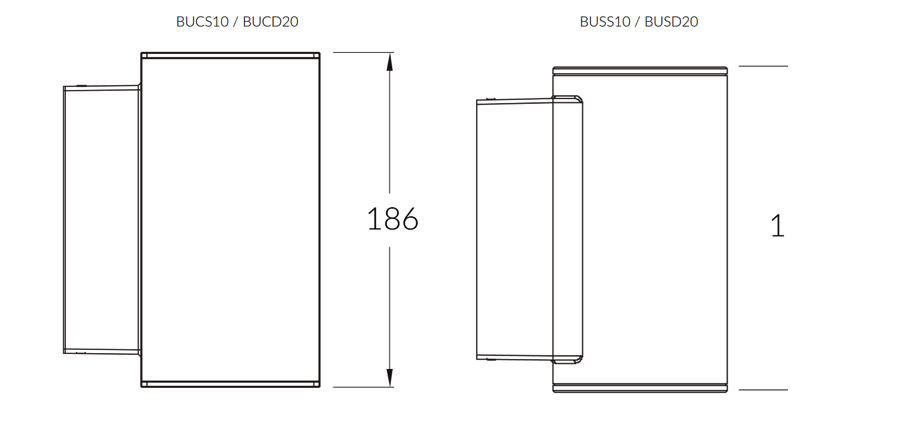

Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| BUSD20-R83B15 | 100 x 100 x 186 | 20 | 2000 | 100 | 3000 | |
| BUSD20-R83B24 | 100 x 100 x 186 | 20 | 2000 | 100 | 3000 | |
| BUSD20-R83B36 | 100 x 100 x 186 | 20 | 2000 | 100 | 3000 | |
| BUSD20-R84B15 | 100 x 100 x 186 | 20 | 2000 | 100 | 4000 | |
| BUSD20-R84B24 | 100 x 100 x 186 | 20 | 2000 | 100 | 4000 | |
| BUSD20-R84B36 | 100 x 100 x 186 | 20 | 2000 | 100 | 4000 | |
| BUSD20-R85B15 | 100 x 100 x 186 | 20 | 2000 | 100 | 5000 | |
| BUSD20-R85B24 | 100 x 100 x 186 | 20 | 2000 | 100 | 5000 | |
| BUSD20-R85B36 | 100 x 100 x 186 | 20 | 2000 | 100 | 5000 | |
| BUSS10-R83B15 | 100 x 100 x 186 | 10 | 1000 | 100 | 3000 | |
| BUSS10-R83B24 | 100 x 100 x 186 | 10 | 1000 | 100 | 3000 | |
| BUSS10-R83B36 | 100 x 100 x 186 | 10 | 1000 | 100 | 3000 | |
| BUSS10-R84B15 | 100 x 100 x 186 | 10 | 1000 | 100 | 4000 | |
| BUSS10-R84B24 | 100 x 100 x 186 | 10 | 1000 | 100 | 4000 | |
| BUSS10-R84B36 | 100 x 100 x 186 | 10 | 1000 | 100 | 4000 | |
| BUSS10-R85B15 | 100 x 100 x 186 | 10 | 1000 | 100 | 5000 | |
| BUSS10-R85B24 | 100 x 100 x 186 | 10 | 1000 | 100 | 5000 | |
| BUSS10-R85B36 | 100 x 100 x 186 | 10 | 1000 | 100 | 5000 |
