BD

Features

  • Wide beam lighting distribution

  • Suitable for surface, wall or suspended by chain/conduit

  • Supply with frosted polycarbonate extruded diffuser

  • Hinged and removable diffuser design easy for installation & maintenance

Indoor
IP20
Dim Optional

Suitable Applications

Specifications
Expand
Balmoral BDBD210WBD220WBD430WBD440WBD550WBD560W
Nominal Power (W)102030405060
Dimension L x W x H570 x 60 x 761170 x 60 x 761470 x 60 x 76
LED Lumen (lm)130026003900520065007800
Efficacy (lm/W)130
Colour Temp. (K)3000 / 4000 / 6500
Type. CRI (Ra)>80
SDCM≤3 step MacAdam
Beam Angle (°)120
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Power Factor>0.9
Rated Life Span>50,000hrs
IP RatingIP20
HousingMetal steel with glossy white powder coat
End CapABS + UV & PP white colour plastic
DiffuserHigh transmissive polycarbonate frosted diffuser
MountingSurface / Suspend

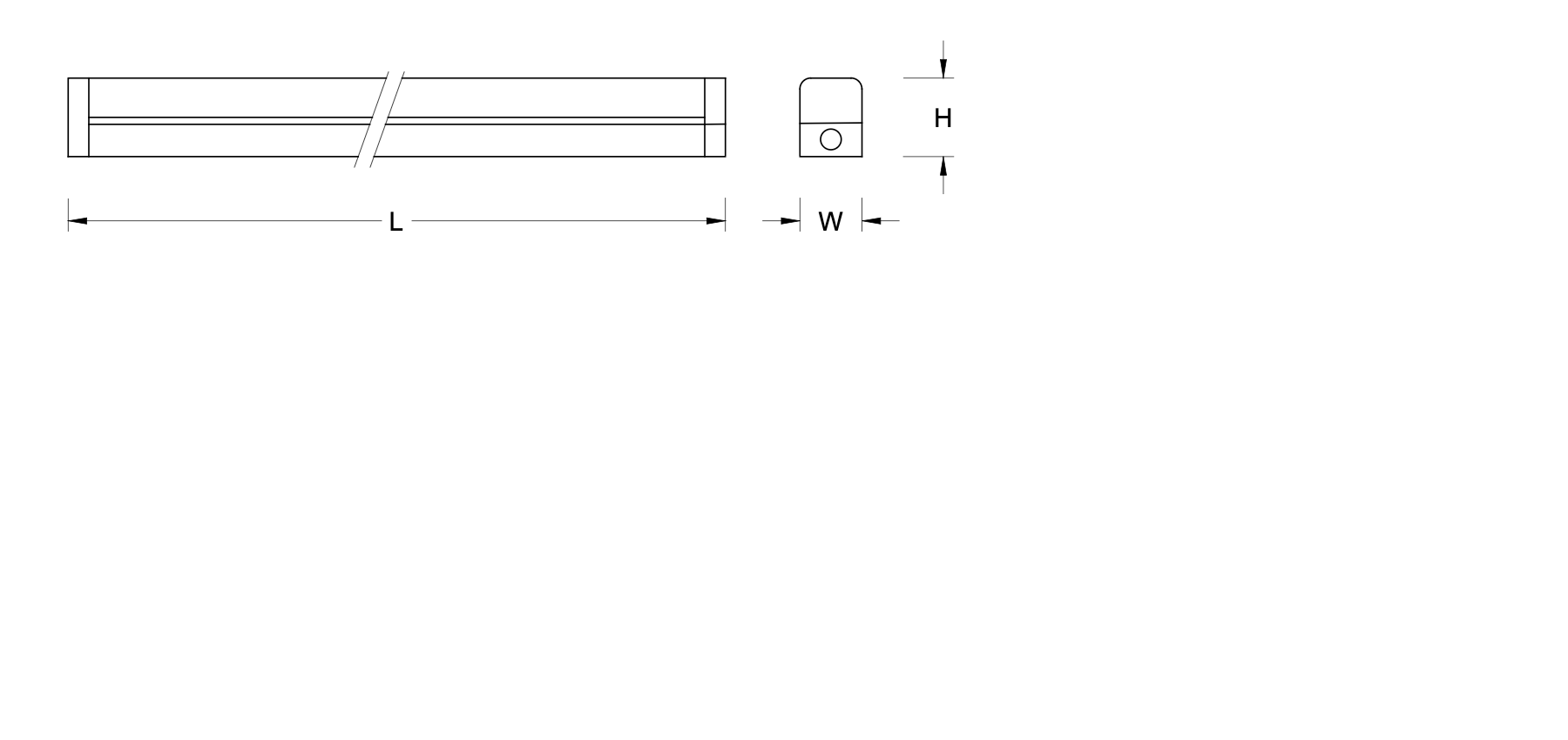

Dimensions
Expand
BD

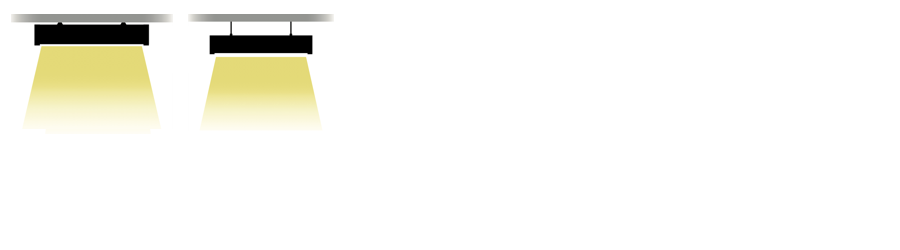

Mounting Methods
Expand
BD

Product Datasheet

BALMORAL BD
(showing 6 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
Efficacy (lm/W)
Sort
CCT
Sort
IES
BD210W570 x 60 x 761013001303000 / 4000 / 6500
BD220W570 x 60 x 762026001303000 / 4000 / 6500
BD430W1170 x 60 x 763039001303000 / 4000 / 6500
BD440W1170 x 60 x 764052001303000 / 4000 / 6500
BD550W1470 x 60 x 765065001303000 / 4000 / 6500
BD560W1470 x 60 x 766078001303000 / 4000 / 6500
