Item 1 of 1
ARS

Features

  • Suface-mounted luminaire for T8 tubes

  • Semi low bright anodised aluminium louvre

  • Slim, solid and light weight body

  • Hinged louvred for easy maintenance

  • Hanger ready for quick installation

Indoor
IP20
Dim Optional

Suitable Applications

Specifications
Expand
ARSARS21T8A ARSW22T8A ARSW23T8A ARS42T8A ARSW42T8A ARSW43T8A
Nominal Power (W)Single tube Double tube Triple tube Double tube Triple tube
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)depends on tube
Efficacy (lm/W)depends on tube
CRIdepends on tube
Power Factordepends on tube
SDCMdepends on tube
CCT (K)depends on tube
IP20
Width (mm)300605300605
Length (mm)6151225
Height (mm)90
HousingHeavy gauge sheet steel body with anodized aluminium reflector
FinishingWhite epoxy powder coating & oven-baked
Lamp HolderPolycarbonate housing with copper plate contact
WireHeat resistance 105°C (Sirim approved type)
Light SourceT8 LED Lamp
ConnectorVDE, UL safety approved material
MountingSurface

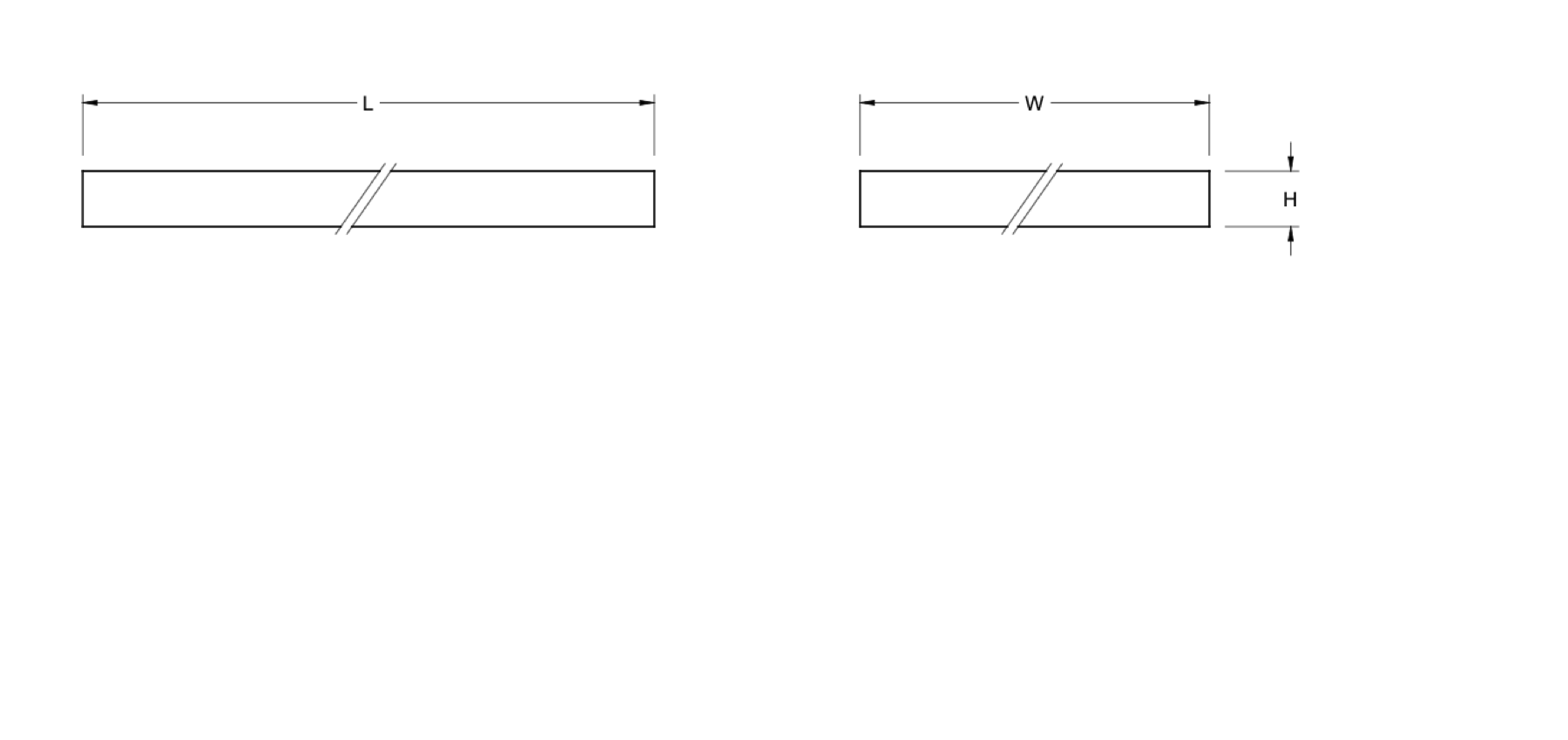

Dimensions
Expand
ARS Dim

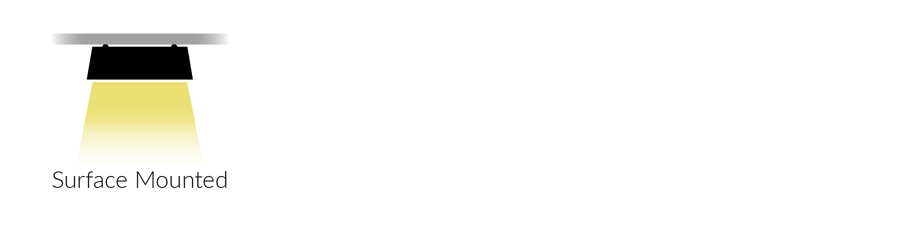

Mounting Methods
Expand
ARS Mount

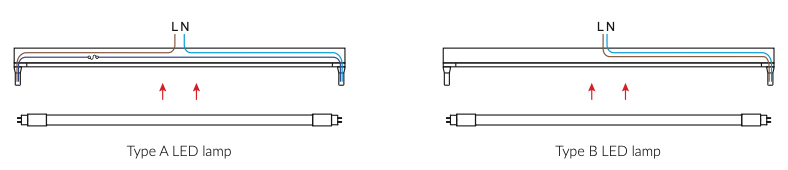

T8 Tube Installation
Expand
T8 tube install.png

Product Datasheet

ARMSTRONG ARS
(showing 6 product SKUs)
Nominal Power
Model Number
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
IES
ARS21T8A Single tube depends on tube
ARSW22T8A Double tube depends on tube
ARSW23T8A Triple tube depends on tube
ARS42T8A Double tube depends on tube
ARSW42T8A Double tube depends on tube
ARSW43T8A Triple tube depends on tube
