ARP

Features

  • Plaster recessed troffer

  • Semi low bright anodised aluminium louvre

  • Slim, solid and light weight body

  • Hinged louvred for easy maintenance

  • Hanger ready for quick installation

Indoor
IP20
Dim Optional

Suitable Applications

Specifications
Expand
ARPARPW22T8A ARPW23T8A ARP42T8A ARPW42T8A ARPW43T8A
Nominal Power (W)Double tube Triple tube Double tube Triple tube
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)depends on tube
Efficacy (lm/W)depends on tube
CRIdepends on tube
Power Factordepends on tube
SDCMdepends on tube
CCT (K)depends on tube
IP20
Width W1 (mm)591288591
Width W2 (mm)630330630
Length L1 (mm)6151225
Length L2 (mm)6501258
Height (mm)94
HousingHeavy gauge sheet steel body with anodized aluminium reflector
FinishingWhite epoxy powder coating & oven-baked
Lamp HolderPolycarbonate housing with copper plate contact
WireHeat resistance 105°C (Sirim approved type)
Light SourceT8 LED Lamp
CannectorVDE, UL safety approved material
MountingRecessed Plaster

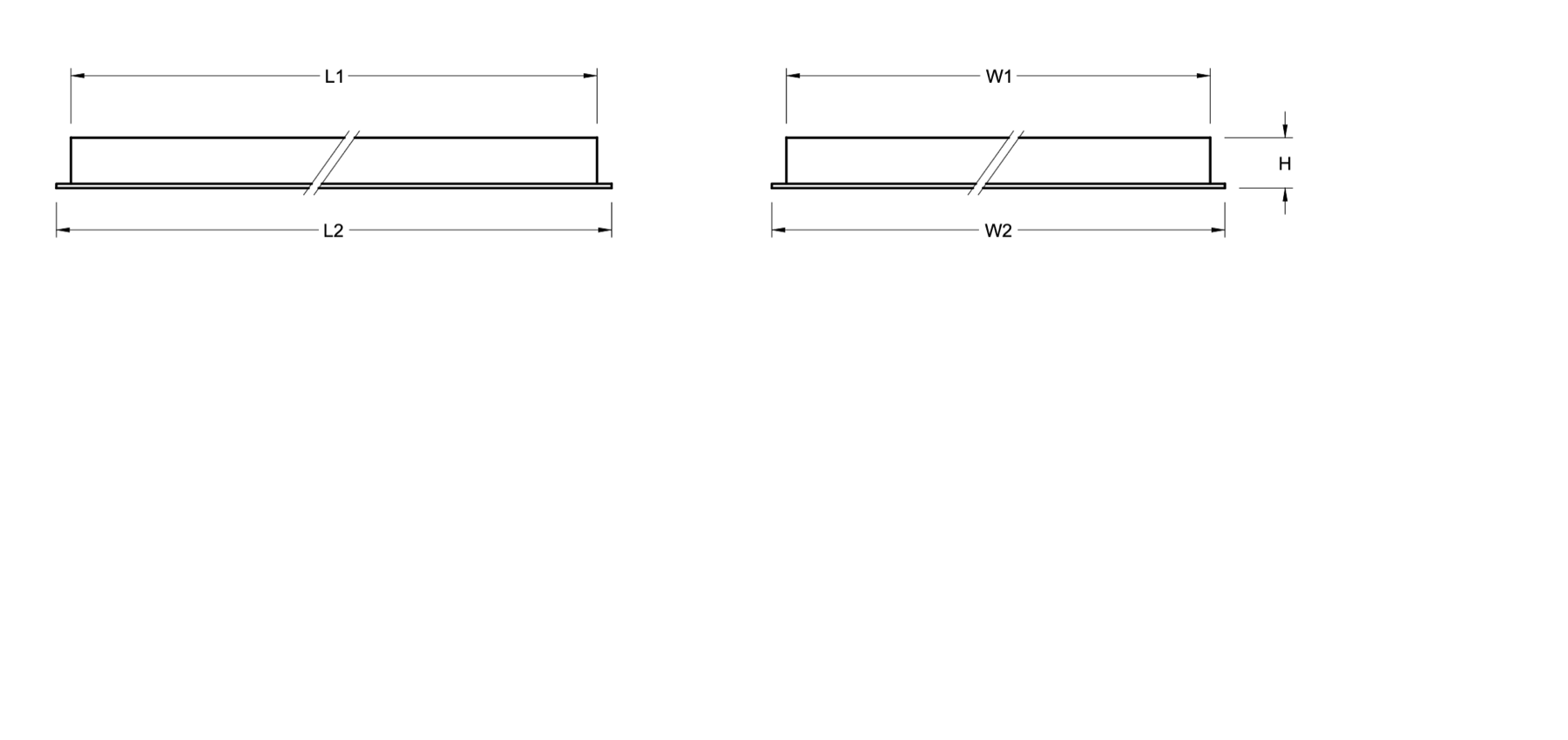

Dimensions
Expand
ARP Dim

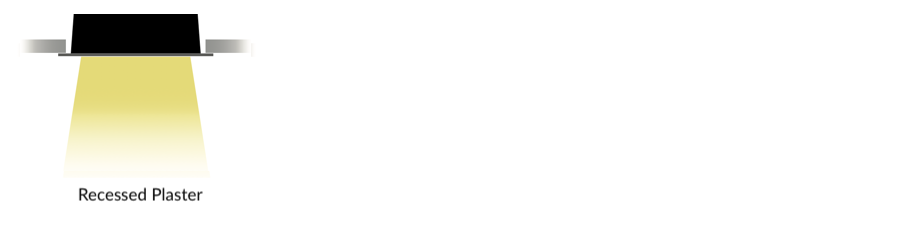

Mounting Methods
Expand
ARP Mount

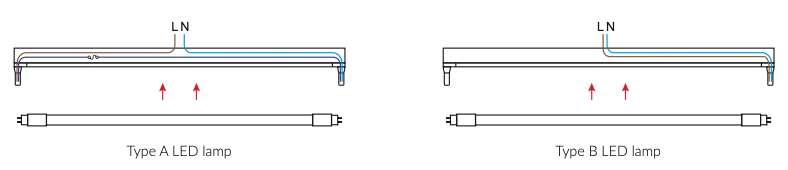

T8 Tube Installation
Expand
T8 tube install.png

Product Datasheet

ARMSTRONG ARP
(showing 5 product SKUs)
Nominal Power
Model Number
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
IES
ARPW22T8A Double tube depends on tube
ARPW23T8A Triple tube depends on tube
ARP42T8A Double tube depends on tube
ARPW42T8A Double tube depends on tube
ARPW43T8A Triple tube depends on tube
